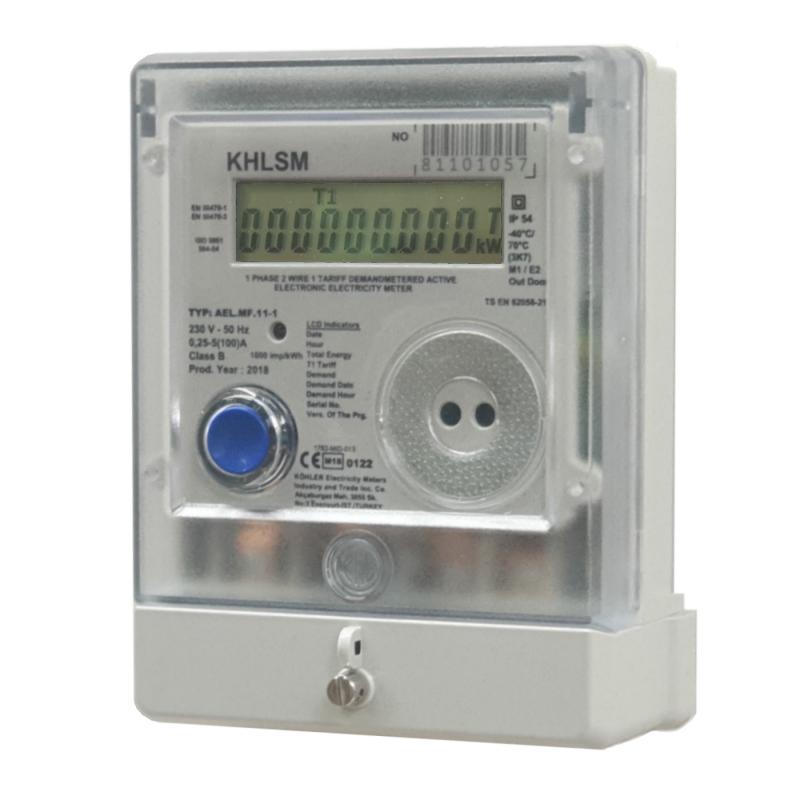

Kohler AEL MF11-1 Single Phase Check Meter

The AEL.MF.11-1 single phase meter is a great choice for a100 Amp check meter due to its exceptional value and accuracy. Manufactured by KHLSM, this compact unit boasts easy installation, a large and user-friendly display. Featuring a convenient button interface, this meter allows you to effortlessly navigate through various essential...
SKU: MF.11-1
Vendor: Kohler
Availability: In Stock
Product Type: Single Phase Meter
Regular price
£32.00
Regular price
£36.00
Sale price
£32.00
Subtotal:
£32.00

Excluding VAT and Shipping

The prices displayed on these products exclude VAT and Shipping costs.

Free Shipping

Free standard shipping on orders over £500.00

Shipping

We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.

Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.

Payment Protection Guarenteed

Learn More.

Payment Protection

All orders purchased through this store are protected via Shop pay giving you the piece of mind you need to shop with us

Request A Quote

Ordering for a project, why not speak to one of our friendly advisors about quantity orders

10 customers are viewing this product

The AEL.MF.11-1 single phase meter is a great choice for a100 Amp check meter due to its exceptional value and accuracy. Manufactured by KHLSM, this compact unit boasts easy installation, a large and user-friendly display.

Featuring a convenient button interface, this meter allows you to effortlessly navigate through various essential data points. Scroll through Date, Time, Total Energy Consumed (kWh), as well as Maximum Demand (kW) and its corresponding recording time. Thanks to the meter's internal battery, accessing this data remains possible even when the meter's power supply is temporarily switched off, making it an ideal solution for applications where power interruptions may occur.

Complying with the Measuring Instruments Directive (MID), this wall-mounted meter guarantees exceptional accuracy and is fully approved for both billing purposes and consumption monitoring in single phase power supplies.

To provide an added layer of security, this meter is accompanied by our single phase security kit, effectively deterring both accidental and deliberate tampering. The kit includes four meter collars, ensuring a secure connection for your meter tails, and a meter seal that prevents unauthorized access to the terminals.

Key Features:

  • Standard terminal cover included
  • Fully MID approved
  • Scrolling button
  • EN 50470 1-3 Class B (1%)
  • Easy to read LCD display
  • Optical port for configuration or meter reading

Technical Data:

  • Voltage Range: 220-240V
  • Maximum Voltage: 267V
  • Current Measuring Range: up to 100A
  • Meter Phase: Single Phase
  • Certified Product Life: 10 Years
  • Protection: IP54

Click Here For Product Datasheet
