SaleBundle: SMART-X96-5-MID & 3X T24/T36 Split Core Current Transformers
Bundle: SMART-X96-5-MID & 3X T24/T36 Split Core Current Transformers
Bundle: SMART-X96-5-MID & 3X T24/T36 Split Core Current Transformers
Bundle: SMART-X96-5-MID & 3X T24/T36 Split Core Current Transformers
Bundle: SMART-X96-5-MID & 3X T24/T36 Split Core Current Transformers
JSG Metering Solutions LTD

Bundle: SMART-X96-5-MID & 3X T24/T36 Split Core Current Transformers

SKU: SMART-X96-5-MID-T24-100/5A
£225.00£249.00-10% In Stock
CT Ratio: 100/5A
Excluding VAT and Shipping
The prices displayed on these products exclude VAT and Shipping costs.
Free Shipping
Free standard shipping on orders over £500.00
Free Shipping

Shipping

We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose.

Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.

Payment Protection Guaranteed
Learn More.
Payment Protection Guaranteed

Payment Protection

All orders purchased through this store are protected via Shop Pay giving you the peace of mind you need to shop with us.

Request A Quote
Ordering for a project, why not speak to one of our advisors about quantity orders.
Simple Installation
Most of our meters are designed for commercial 100A applications, meaning they benefit from simple Live and Neutral installation.
Fast & Secure Shipping
JSG keeps an abundance of off the shelf items meaning we are able to fulfil orders within 48 hours.
Top Quality Products
With direct access to industry leading manufacturers we offer only the highest quality products.
Details

Product Details

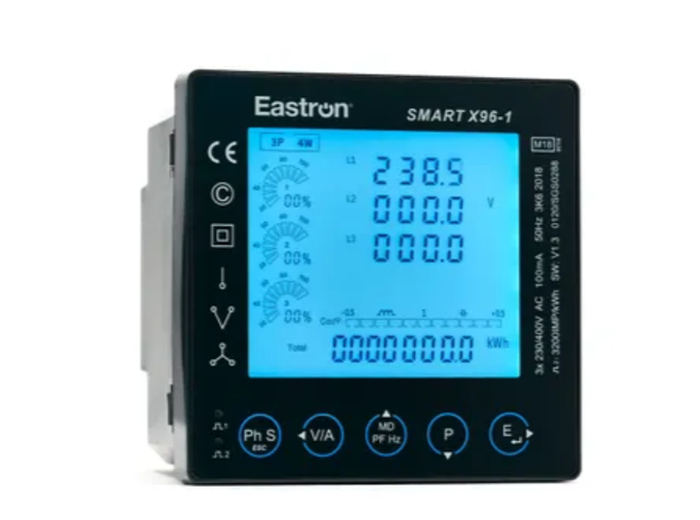

Panel Metering
Panel Metering

Our range of MID certified panel meters are suitable for any industrial installation.

Our Smart X96 range has been carefully designed and engineered to offer the highest level of accuracy and measurement parameters while maintaining their size and simplistic UX. Touch screen buttons and the slick black casing gives this series a futuristic, aesthetically pleasing look. Having gained a reputation over the last 10 years for their reliability, Eastron panel meters are the desired energy monitor for panel builders and contractors looking for quality and intelligent design.

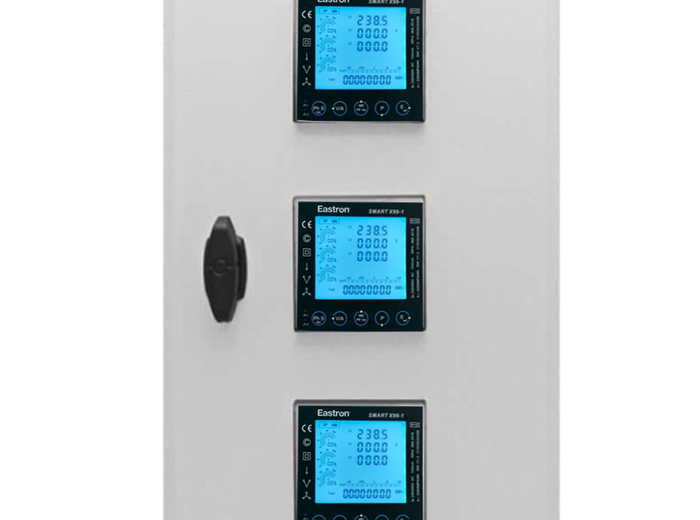

Panel mounting for Industrial Install
Panel mounting for Industrial Install

Panel mounted electricity meters are designed for high level performance and are safe and fast to install. Our Panel mounted electricity meters are available in two product lines: the Smart x96-1 Easy Click series and the Smart x96-5 series.

PRODUCT FEATURES:

METER INFORMATION:

  • Single Phase (1P2W) MID Certified
  • Three Phase (3P3W) MID Certified
  • Three Phase (3P4W) MID Certified
  • Class 0.5s Accuracy
  • Phase Sequence Detection
  • Individual Harmonics upto 63rd
  • -/1A CT Operated or -/5A CT Operated
  • RS485 Modbus RTU
  • Dual Pulse Outputs
  • 96mm² Panel Mounted (92mm² Cut Out)
  • Digital Backlit Display and Touch Screen Buttons

CT Information:

  • 1ph x 3pcs (to cover 3ph application)
  • Split Core
  • 100-250A (24mm Aperture) 300A-600A (36mm Aperture)
  • 5A Secondary Current
  • 1m Fly Lead (2.5mm Wire)
  • Accuracy Class 1

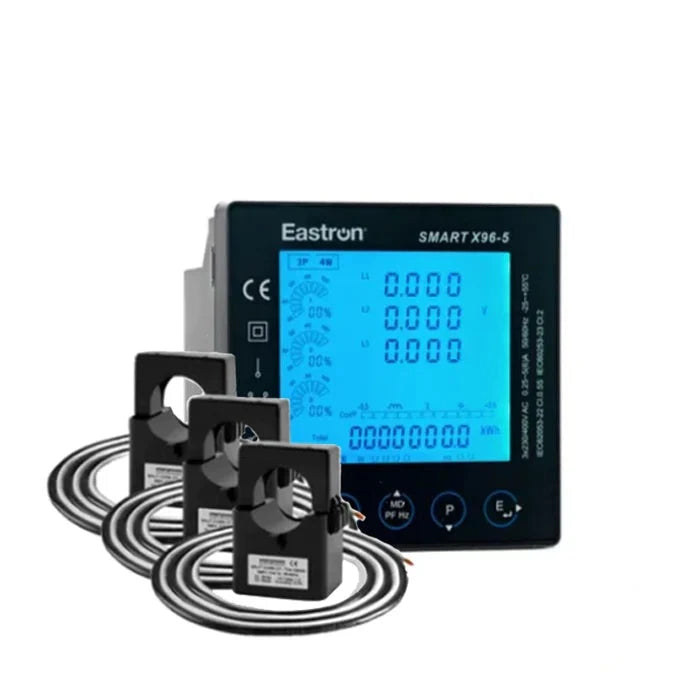

This bundle includes 1 x SMART-X96-5-MID and 3 x T24 5A Current Transformer

You will need to confirm what Current Transformer ratio you require before checkout, as per the options section below.

METER DETAILS:

Click Here For Product Datasheet

Click Here For User Manual

Click Here For Product Protocol

CT DETAILS:

Click Here For Product Datasheet
