Sale
Emlite
EmLite ECA2 Single Phase (Variations Available)
£38.50£40.00-4%
In Stock
Excluding VAT and Shipping
The prices displayed on these products exclude VAT and Shipping costs.
Free Shipping
Free standard shipping on orders over £500.00
Payment Protection Guaranteed
Learn More.
Request A Quote
Ordering for a project, why not speak to one of our friendly advisors about quantity orders.
Simple Installation
Most of our meters are designed for commercial 100A applications, meaning they benefit from simple Live and Neutral installation.
Fast & Secure Shipping
JSG keeps an abundance of off the shelf items meaning we are able to fulfil orders within 48 hours.
Top Quality Products
With direct access to industry leading manufacturers we offer only the highest quality products.
Details
Product Details
Solar Generation Meter
JSG Metering stocks a large range of single phase & three phase meters, these meters support import export generation meaning they can be used on any solar PV system for measuring energy sent back to the grid.
If you generate renewable electricity in your home or business, you can feed back into the grid any electricity that you don't use. Under the Smart Export Guarantee (SEG) you will be paid for every unit of electricity that you feed back. You won't be paid for any that you use yourself.
How it works
You're likely most familiar with PV, which is utilized in solar panels. When the sun shines onto a solar panel, energy from the sunlight is absorbed by the PV cells in the panel. This energy creates electrical charges that move in response to an internal electrical field in the cell, causing electricity to flow.
Excess solar generated energy can be used in different ways, if you have an energy storage system you can store this excess electric to use at a high peak moment. Alternatively you can sell excess energy back to the national grid, you can be remunerated anywhere from £0.06p to £0.09p per kWh depending on who your energy provider is.

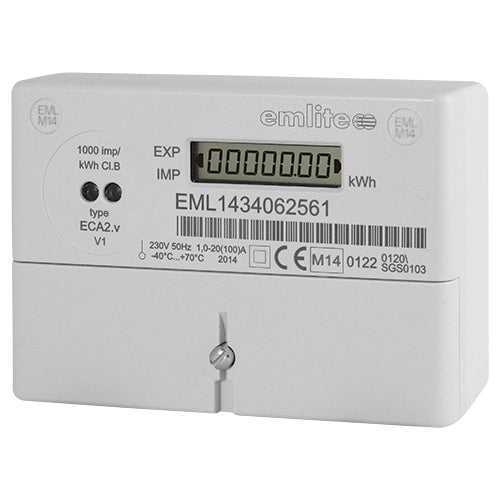

The EmLite ECA2 single phase meter stands out for its compact design, making it suitable for installations where space is limited. It provides precise measurement of active energy (kWh) with registers displayed on a large, easy-to-read LCD screen.
The meter offers multiple options, including non-pulse output (ECA2.Z), pulsed output (ECA2.V), import and export outputs (ECA2.BI), and net import and export outputs (ECA2.NV).
This meter is widely used across various applications, with one of its most popular uses being for Solar PV installations, often for MCS sign-off (ECA2.NV).
It also features an optical port for electronic meter reading and configuration, it ensures convenient operation.
Additionally, the meter is highly reliable, capable of withstanding high voltage events and overcurrent, with resistance to tampering and fraud protection. It boasts high-quality solid brass cable terminals for efficient operation up to 100 Amps.
Key Features:
- Extended terminal cover optional
- Fully MID approved
- EN 50470 1-3 Class B (1%)
- Easy to read LCD display
- Optical port for configuration or meter reading
Technical Data:
- Voltage Range: 220-240V
- Maximum Voltage: 267V
- Current Measuring Range: up to 100A
- Meter Phase: Single Phase
- Certified Product Life: 20 Years
- Protection: IP52
