Home /All Products /Bundle: SDM120CT-PULSE-MID & T24 Split Core Current Transformer

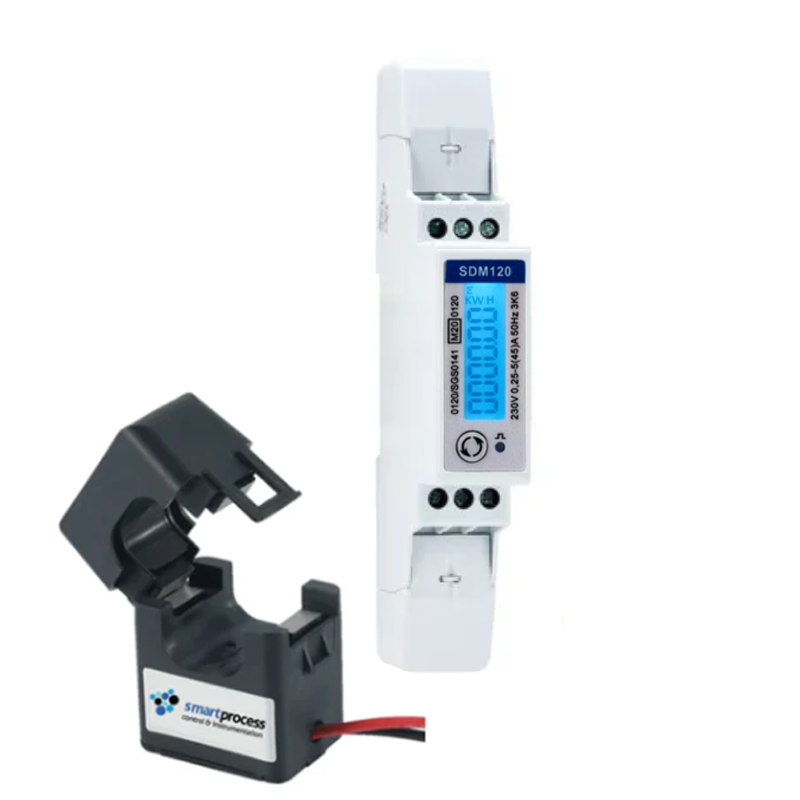

SaleBundle: SDM120CT-PULSE-MID & T24 Split Core Current Transformer
Bundle: SDM120CT-PULSE-MID & T24 Split Core Current Transformer
Bundle: SDM120CT-PULSE-MID & T24 Split Core Current Transformer
Bundle: SDM120CT-PULSE-MID & T24 Split Core Current Transformer
Eastron

Bundle: SDM120CT-PULSE-MID & T24 Split Core Current Transformer

SKU: SDM120CT-PULSE-MID-T24-100/5A
£64.80£72.00-10% In Stock
CT Ratio: 100/5A
Excluding VAT and Shipping
The prices displayed on these products exclude VAT and Shipping costs.
Free Shipping
Free standard shipping on orders over £500.00
Free Shipping

Shipping

We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose.

Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.

Payment Protection Guaranteed
Learn More.
Payment Protection Guaranteed

Payment Protection

All orders purchased through this store are protected via Shop Pay giving you the peace of mind you need to shop with us.

Request A Quote
Ordering for a project, why not speak to one of our advisors about quantity orders.
Simple Installation
Most of our meters are designed for commercial 100A applications, meaning they benefit from simple Live and Neutral installation.
Fast & Secure Shipping
JSG keeps an abundance of off the shelf items meaning we are able to fulfil orders within 48 hours.
Top Quality Products
With direct access to industry leading manufacturers we offer only the highest quality products.
Details

Product Details

Din Rail Metering
Din Rail Metering

Our range of MID certified din rail meters are suitable for almost any LV application.

From our single phase 1 module meters all the way up to our three phase CT operated meters we can supply any type of din rail product either on its own or bespoke built into a pre wired enclosure for an out of the box solution.

JSG Metering Solutions Offers A Wide Range Of Din Rail Mounted Metering And Accessories
Din Rail mounting for simple install

DIN rail mounted electricity meters are designed for high level performance and are safe and fast to install. Our DIN rail mounted electricity meters are available in product lines including: Single Phase SDM120 series, Single Phase SDM230 series, Three Phase SDM54 series, Three Phase SDM72D series, Three Phase SDM630 series, and Three Phase SDM630MCT series.

Full metering solution
Full metering solution

Our full metering solutions means we can supply any type of meter directly to site ready for installation.

Our fully trained warehouse team can program each meter before it leaves us so all you have to do is wire it in for a turnkey solution.

Please confirm if you need any parameters set including: Parity, Pulse Rate, Baudrate, Stop bits etc

If you require a higher CT ratio please get in touch with us on 01268 773 766

METER INFORMATION

  • Single Phase 5A current transformer operated
  • MID Certified (B and D)
  • Bi-directional measurement for kW and kWh
  • Configurable pulsed output (Import, Export, Nett kWh)
  • Dual Pulsed Communications
  • Multi Parameter measurements
  • Simple set up and operation
  • Din Rail Mounted

CT INFORMATION

  • Split Core
  • Single Phase
  • 24mm Aperture (Until 300A then 36mm)
  • 100-600A Primary Current
  • 5A Secondary Current
  • 1m Fly Lead (2.5mm Wire)
  • Accuracy Class 1

METER DETAILS:

CLICK HERE FOR PRODUCT DATASHEET

CLICK HERE FOR USER MANUAL

CLICK HERE FOR PRODUCT PROTOCOL

CT DETAILS:

Click Here For Product Datasheet
