Eastron

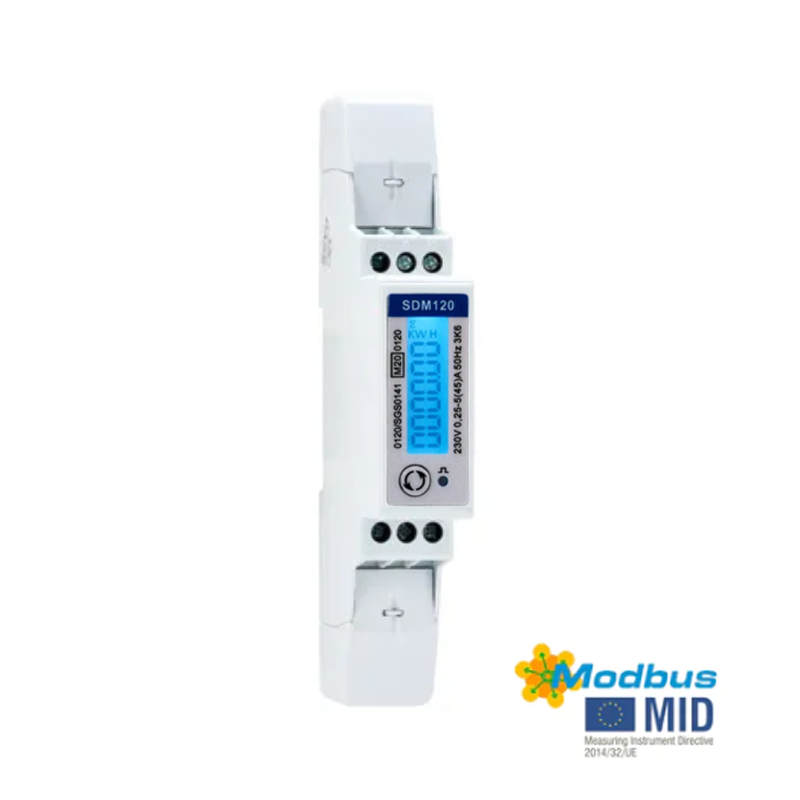

SDM120-MOD-MID Digital Single Phase Meter
£60.00
In Stock
Excluding VAT and Shipping
The prices displayed on these products exclude VAT and Shipping costs.
Free Shipping
Free standard shipping on orders over £500.00
Payment Protection Guaranteed
Learn More.
Request A Quote
Ordering for a project, why not speak to one of our advisors about quantity orders.
Simple Installation
Most of our meters are designed for commercial 100A applications, meaning they benefit from simple Live and Neutral installation.
Fast & Secure Shipping
JSG keeps an abundance of off the shelf items meaning we are able to fulfil orders within 48 hours.
Top Quality Products
With direct access to industry leading manufacturers we offer only the highest quality products.
Details
Product Details
Din Rail Metering
Our range of MID certified din rail meters are suitable for almost any LV application.
From our single phase 1 module meters all the way up to our three phase CT operated meters we can supply any type of din rail product either on its own or bespoke built into a pre wired enclosure for an out of the box solution.
Din Rail mounting for simple install
DIN rail mounted electricity meters are designed for high level performance and are safe and fast to install. Our DIN rail mounted electricity meters are available in product lines including: Single Phase SDM120 series, Single Phase SDM230 series, Three Phase SDM54 series, Three Phase SDM72D series, Three Phase SDM630 series, and Three Phase SDM630MCT series.
Full metering solution
Our full metering solutions means we can supply any type of meter directly to site ready for installation.
Our fully trained warehouse team can program each meter before it leaves us so all you have to do is wire it in for a turnkey solution.
The SDM120-MOD-MID is a Single Phase Digital Power Meter that measures a range of parameters in a 45A AC Circuit, removing the need for additional current transformers. This particular meter has proven to be very popular due to how cost-effective it is. Unlike other meters available on the market, this model has Pulse and Modbus communications built in, eradicating the requirement of purchasing extra modules. The SDM120 Series is housed in a 1-DIN (17.5mm) case meaning it is compact and space-saving. This specific model measures Voltage, Current, Power Factor, Active Power, Reactive Power, Apparent Power, Total Active Energy, Import & Export Active Energy.
We have invested in MID B&D certification for the SDM120-MOD-MID, this proves the accuracy and quality of the product and allows it to be used for Billing Applications. As of April 2016, MID approved Meters will be the only legal option when the measurements are to be used for billing. All of our MID approved meters are certified here in the UK.
Technical Specification
- MID B&D Approved - 0120/SGS0221
- Single Phase (1P2W)
- 45A AC (45A Direct Connected)
- 230V AC
- RS485 Modbus RTU
- Dual Pulsed Outputs
- 1-DIN Module
- Digital Backlit Display
- Multi-functional parameters
