Eastron

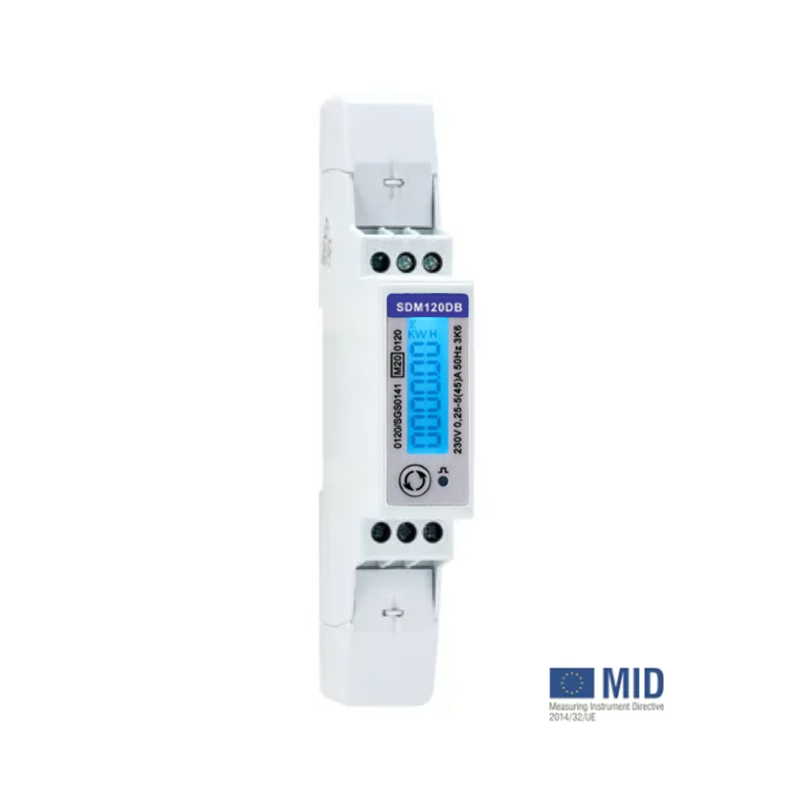

SDM120DB-MID Digital Single Phase Meter
£30.00
In Stock
Excluding VAT and Shipping
The prices displayed on these products exclude VAT and Shipping costs.
Free Shipping
Free standard shipping on orders over £500.00
Payment Protection Guaranteed
Learn More.
Request A Quote
Ordering for a project, why not speak to one of our advisors about quantity orders.
Simple Installation
Most of our meters are designed for commercial 100A applications, meaning they benefit from simple Live and Neutral installation.
Fast & Secure Shipping
JSG keeps an abundance of off the shelf items meaning we are able to fulfil orders within 48 hours.
Top Quality Products
With direct access to industry leading manufacturers we offer only the highest quality products.
Details
Product Details
Din Rail Metering
Our range of MID certified din rail meters are suitable for almost any LV application.
From our single phase 1 module meters all the way up to our three phase CT operated meters we can supply any type of din rail product either on its own or bespoke built into a pre wired enclosure for an out of the box solution.
Din Rail mounting for simple install
DIN rail mounted electricity meters are designed for high level performance and are safe and fast to install. Our DIN rail mounted electricity meters are available in product lines including: Single Phase SDM120 series, Single Phase SDM230 series, Three Phase SDM54 series, Three Phase SDM72D series, Three Phase SDM630 series, and Three Phase SDM630MCT series.
Full metering solution
Our full metering solutions means we can supply any type of meter directly to site ready for installation.
Our fully trained warehouse team can program each meter before it leaves us so all you have to do is wire it in for a turnkey solution.
The SDM120DB is a basic kWh meter with a fixed pulse output. This is a low cost solutionm for measutring low load circuits (45A rated) .
All SDM120 meters are housed in a 1U Dinrail mounted housing. They also come complete with sealable terminal covers to stop any tampering with the connections.
Technical Data:
- Voltage AC (Un) 230V
- Voltage range -30% to +30% of Un
- Base current(Ib) 5A
- Max current(Imax) 45A
- Starting current (mA) 0.4% of Ib
- Power consumption of current ≤2W / 10VA
- Frequency (Hz) 50/60 (±10%)
- Accuracy 1.0
- Standards IEC 62053-21
- Memory back-up EEprom
- Operating-10°C to +50°C
- Storing -30°C to +70°C
- Upper material Polycarbonate
- Lower material Polycarbonate/glass fibre
- Operating humidity 75%
- Storing humidity 95%
- Protection against dust and water IP40
- Insulating encased meter II
- AC voltage withstand 2KV for 1 minute
- Impulse voltage withstand 6KV – 1.2µS waveform
- Current withstand 30Imax for 0.01s
- Pulse output rate 2000 imp/kWh
