Eastron

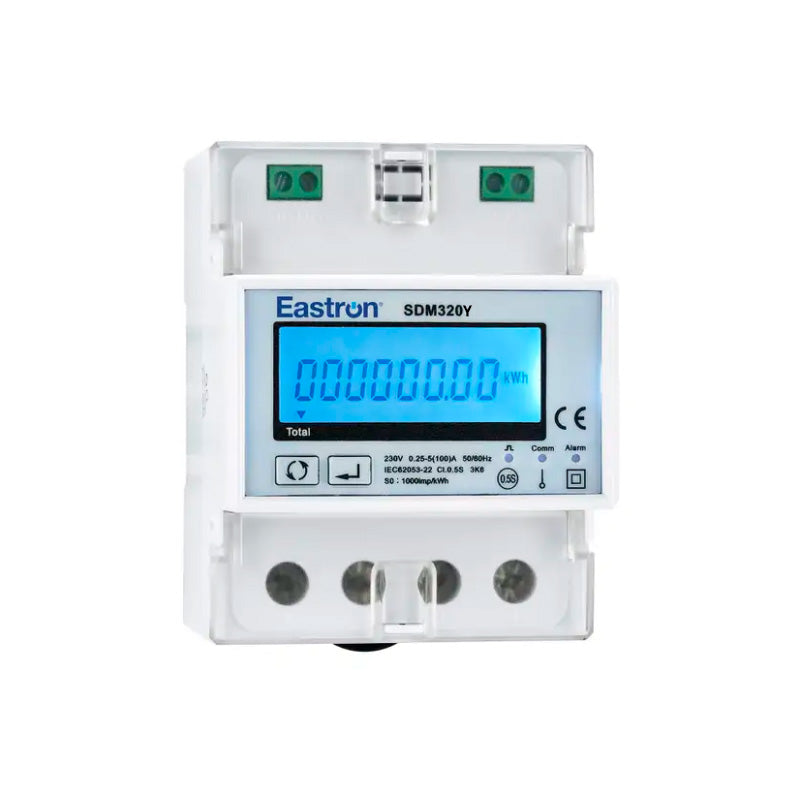

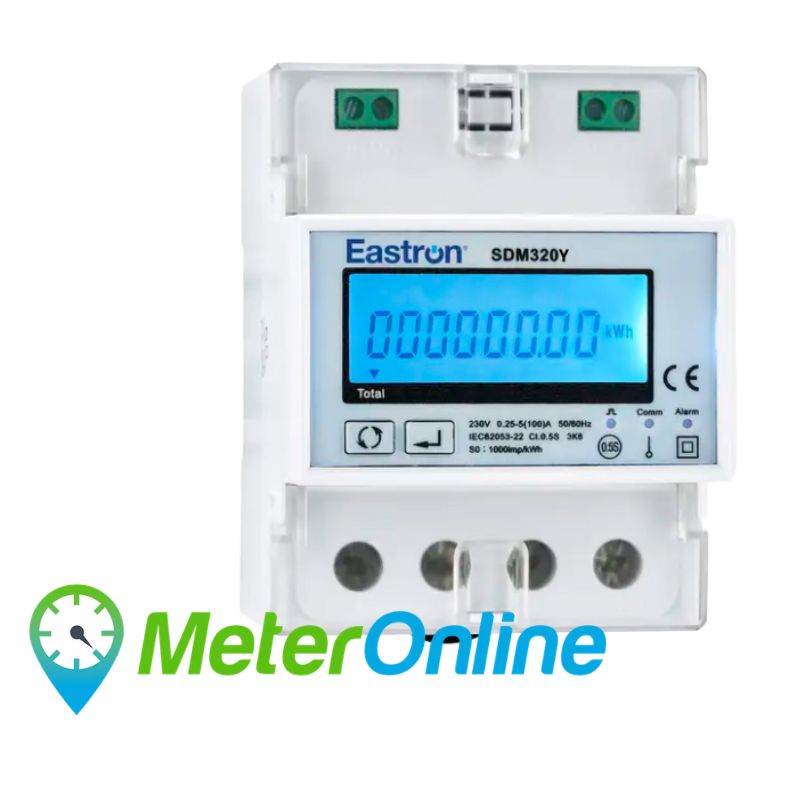

SDM320Y-RF-MID Prepayment Meter
£126.00
In Stock
Excluding VAT and Shipping
The prices displayed on these products exclude VAT and Shipping costs.
Free Shipping
Free standard shipping on orders over £500.00
Payment Protection Guaranteed
Learn More.
Request A Quote
Ordering for a project, why not speak to one of our advisors about quantity orders.
Simple Installation
Most of our meters are designed for commercial 100A applications, meaning they benefit from simple Live and Neutral installation.
Fast & Secure Shipping
JSG keeps an abundance of off the shelf items meaning we are able to fulfil orders within 48 hours.
Top Quality Products
With direct access to industry leading manufacturers we offer only the highest quality products.
Details
Product Details
Din Rail Prepayment
The SDM320Y has been carefully designed and innovated in order to further prepayment technology. This product negates the need for a paper card system which can be easily defrauded by purchasing topup cards online.
This meter allows users to simply tap a pre purchased card against the meter and top up usable credit 24 hours a day.
Benefiting from MID approval you never have to worry about the accuracy of this meter, nor can a tenant dispute an energy reading as the accuracy of this device has been independently verified through a governing body.
How it works

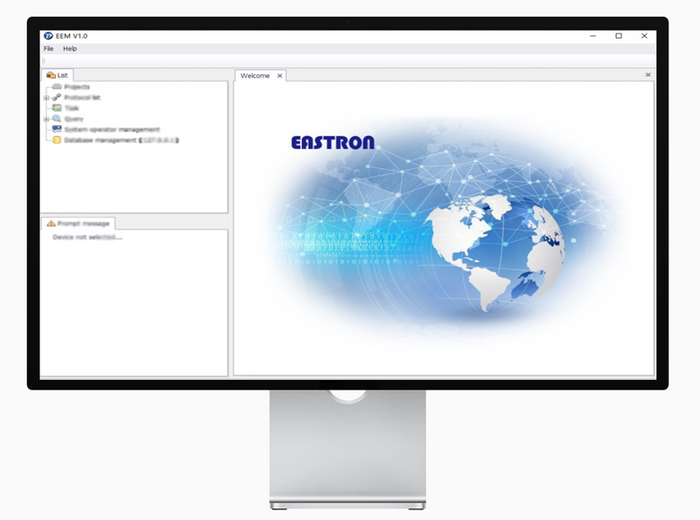

Using EEM software you can topup a tenant's designated RFID card with any monetary amount. All you need to do is accept a physical payment from the tenant, take their card and use this software to top it up.
The tenant just needs to flash their card against the meter and their topup will automatically be deployed to the meter.
This system is the future for prepayment card technology as its secure end-to-end encryption means there is no way to defraud it.
Call us on 01268 773 766 or email us at sales@jsgsolutions.co.uk for more information on this meter.
Product Features:
- Single Phase 100A Direct connect
- Multifunction measurement, display scroll-able settings
- Support AMR, SCADA system
- Prepaid RFID Card function
- Energy re-settable
- White backlit LCD display
- Din rail mounting 35mm
- RS485 Modbus communication
SDM320Y-MID is a single phase electronic prepaid energy card meter. It is in full compliance with technical requirements of IEC62053-22 standard for Class 0.5S energy meter. It has a complete prepaid management system, which is convenient for power purchase. The system automatically deducts fees according to electricity consumption. Recharging operation can be done through the network remotely.The meter has a two-level balance alarm function and an emergency amount function. It will automatically stop power supply when tenant in arrears or credit become zero or reaching the pre-set value.
The meter is with excellent reliability that can display remaining capacity, available remaining, total power consumption/ purchase of electricity,credit line, overdraft consumption, load threshold, pay model, voltage, current, active power, active energy, import energy, export energy, power factor, frequency and time. The reactive power, apparent power can be read by Modbus. SDM320Y is easy to install with nice appearance, small and light. With battery installed inside the meter, the value on the meter still can be read when grid power off. SDM320Y is suitable for a real-time power monitoring system and has the characteristics of multi-function, multi-purpose, high stability and long life. The meter has 1 pulse output, and the pulse constant, pulse width and output unit all can be set. It has RS485 communication interface, support high speed communication function of RS485 (9600bps). It is an ideal choice for power energy monitoring.
