Eastron

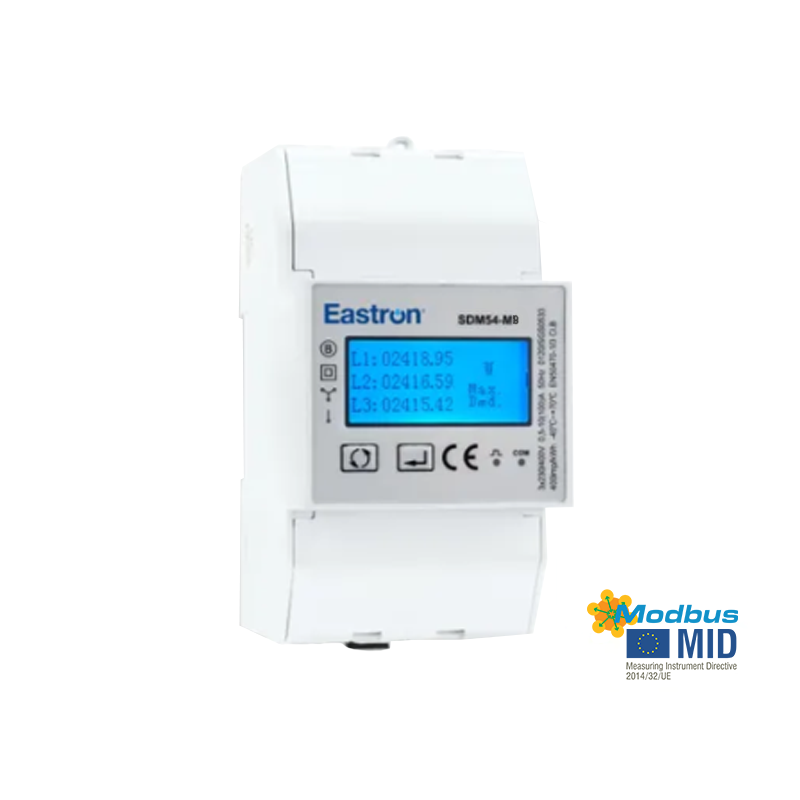

SDM54-MOD-MID Three Phase Direct Connected Meter
£152.00
In Stock
Excluding VAT and Shipping
The prices displayed on these products exclude VAT and Shipping costs.
Free Shipping
Free standard shipping on orders over £500.00
Payment Protection Guaranteed
Learn More.
Request A Quote
Ordering for a project, why not speak to one of our advisors about quantity orders.
Simple Installation
Most of our meters are designed for commercial 100A applications, meaning they benefit from simple Live and Neutral installation.
Fast & Secure Shipping
JSG keeps an abundance of off the shelf items meaning we are able to fulfil orders within 48 hours.
Top Quality Products
With direct access to industry leading manufacturers we offer only the highest quality products.
Details
Product Details
Din Rail Metering
Our range of MID certified din rail meters are suitable for almost any LV application.
From our single phase 1 module meters all the way up to our three phase CT operated meters we can supply any type of din rail product either on its own or bespoke built into a pre wired enclosure for an out of the box solution.
Din Rail mounting for simple install
DIN rail mounted electricity meters are designed for high level performance and are safe and fast to install. Our DIN rail mounted electricity meters are available in product lines including: Single Phase SDM120 series, Single Phase SDM230 series, Three Phase SDM54 series, Three Phase SDM72D series, Three Phase SDM630 series, and Three Phase SDM630MCT series.
Full metering solution
Our full metering solutions means we can supply any type of meter directly to site ready for installation.
Our fully trained warehouse team can program each meter before it leaves us so all you have to do is wire it in for a turnkey solution.
Product Features:
- Single or Three phase
- 100A Direct Connected
- MID B+D Certified
- Class B Accuracy
- Bi-Directional Measurement for Active Energy and Power
- Configurable pulsed output (Import/ Export and Nett kWh)
- RS485 Modbus Communication
- Multi Parameter measurement
- Dual Tariff option available
- 3 Module DIN rail mounted
The SDM54 measures and displays the characteristics of single phase two wires (1p2w) and three phase four wires (3p4w) supplies, including voltage, frequency, current, power, power factor, active and reactive energy, imported or exported. Energy is measured in terms of kWh and kVArh. Maximum demand on power and current can be measured over pre-set periods of up to 60 minutes. The SDM54 supports max.100A direct loads per phase, with dual tariff management options available. The meter is designed for DIN-rail mounting, housed in a 3 DIN module case, with IP51 front protection. The meter is optionally equipped with pulse outputs, RS485 Modbus port or M-bus port. Configuration can also be done via keypad, which is password protected.
