Eastron

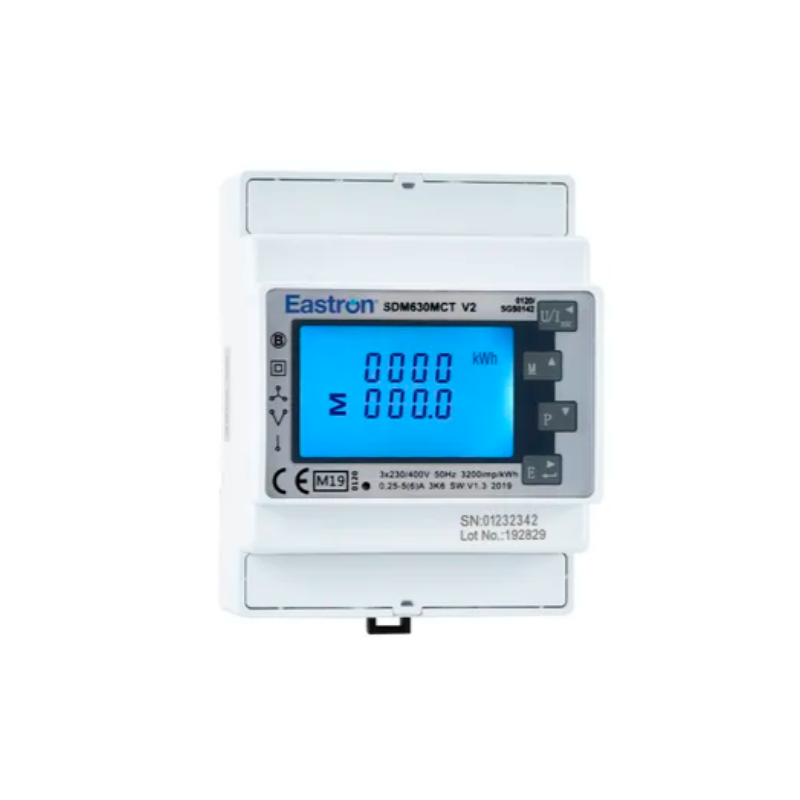

SDM630MCT-E-MID Three Phase CT Operated Meter
£99.00
In Stock
Excluding VAT and Shipping
The prices displayed on these products exclude VAT and Shipping costs.
Free Shipping
Free standard shipping on orders over £500.00
Payment Protection Guaranteed
Learn More.
Request A Quote
Ordering for a project, why not speak to one of our advisors about quantity orders.
Simple Installation
Most of our meters are designed for commercial 100A applications, meaning they benefit from simple Live and Neutral installation.
Fast & Secure Shipping
JSG keeps an abundance of off the shelf items meaning we are able to fulfil orders within 48 hours.
Top Quality Products
With direct access to industry leading manufacturers we offer only the highest quality products.
Details
Product Details
Din Rail Metering
Our range of MID certified din rail meters are suitable for almost any LV application.
From our single phase 1 module meters all the way up to our three phase CT operated meters we can supply any type of din rail product either on its own or bespoke built into a pre wired enclosure for an out of the box solution.
Din Rail mounting for simple install
DIN rail mounted electricity meters are designed for high level performance and are safe and fast to install. Our DIN rail mounted electricity meters are available in product lines including: Single Phase SDM120 series, Single Phase SDM230 series, Three Phase SDM54 series, Three Phase SDM72D series, Three Phase SDM630 series, and Three Phase SDM630MCT series.
Full metering solution
Our full metering solutions means we can supply any type of meter directly to site ready for installation.
Our fully trained warehouse team can program each meter before it leaves us so all you have to do is wire it in for a turnkey solution.
The SDM630MCTE-MID Digital Power Meter can be configured through the password-protected set up menu to work in Single or Three Phase circuits. The unit itself works in conjunction with 1A or 5A current transformers, allowing an easy installation especially when retro-fitting. We have also designed a simple, but effective panel-mounting kit which secures this dinrail meter within a 92mm² cutout to provide a solution to a MID Approved 96mm² Panel Meter (panel kits sold separately).
This particular meter has proven to be very popular due to the detailed measurements it can provide, such as Power Factor and Active Energy. Unlike other meters available on the market, this model has Pulse and Modbus communications built in, eradicating the requirement of purchasing extra modules. The SDM630MCT Series is housed in a 4-DIN (72mm) case meaning it is compact and space-saving. This specific model measures Voltage, Frequency, Power Factor, Max Demand Power, Active Power, Reactive Power, Apparent Power, Total Active Energy, Import & Export Active Energy, Total Reactive Energy, Import & Export Reactive Energy.
Technical Specification
- MID B&D Approved
- Single Phase (1P2W)
- Three Phase (3P4W)
- Multifunction
- -/1A CT Operated
- -/5A CT Operated
- 230/400V AC
- RS485 Modbus RTU
- Dual Pulse Outputs
- 4-DIN Module
- Digital Backlit Display
- Touch Screen Buttons
