Eastron

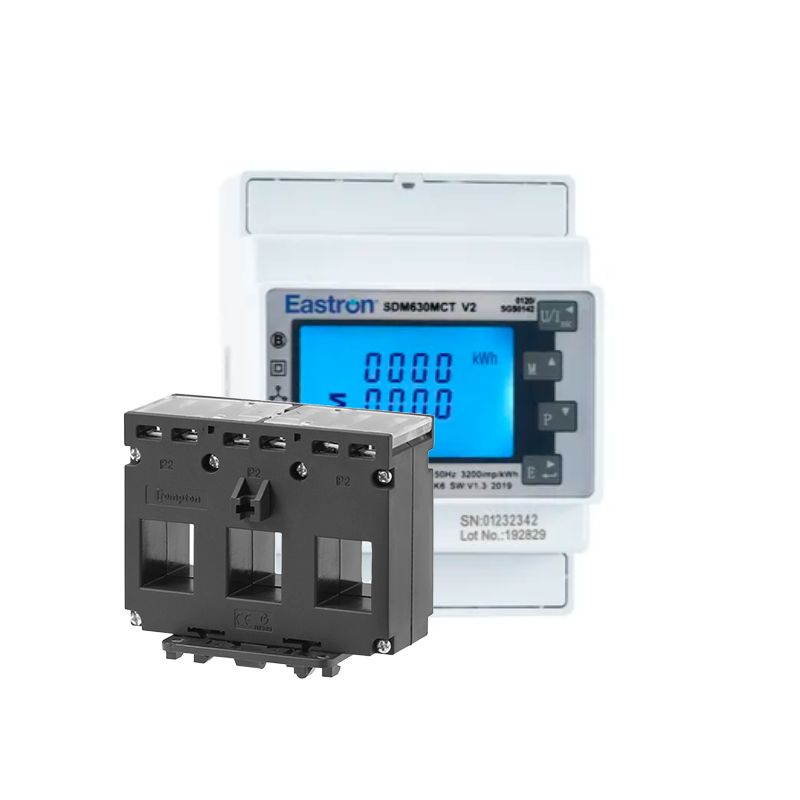

Bundle: SDM630MCT-MOD-MID & Three Phase Current Transformer Block
£145.00£161.00-10%
In Stock
Excluding VAT and Shipping
The prices displayed on these products exclude VAT and Shipping costs.
Free Shipping
Free standard shipping on orders over £500.00
Payment Protection Guaranteed
Learn More.
Request A Quote
Ordering for a project, why not speak to one of our advisors about quantity orders.
Simple Installation
Most of our meters are designed for commercial 100A applications, meaning they benefit from simple Live and Neutral installation.
Fast & Secure Shipping
JSG keeps an abundance of off the shelf items meaning we are able to fulfil orders within 48 hours.
Top Quality Products
With direct access to industry leading manufacturers we offer only the highest quality products.
Details
Product Details
Din Rail Metering
Our range of MID certified din rail meters are suitable for almost any LV application.
From our single phase 1 module meters all the way up to our three phase CT operated meters we can supply any type of din rail product either on its own or bespoke built into a pre wired enclosure for an out of the box solution.
Din Rail mounting for simple install
DIN rail mounted electricity meters are designed for high level performance and are safe and fast to install. Our DIN rail mounted electricity meters are available in product lines including: Single Phase SDM120 series, Single Phase SDM230 series, Three Phase SDM54 series, Three Phase SDM72D series, Three Phase SDM630 series, and Three Phase SDM630MCT series.
Full metering solution
Our full metering solutions means we can supply any type of meter directly to site ready for installation.
Our fully trained warehouse team can program each meter before it leaves us so all you have to do is wire it in for a turnkey solution.
Product Features:
Meter Information:
- MID B&D Approved - 0120/SGS0150
- Single Phase (1P2W) or Three Phase (3P3W or 3P4W)
- Multifunction Meter (16 different parameters)
- CT Operated (1A or 5A secondary - settable)
- 230/400V AC
- RS485 Modbus RTU
- Dual Pulse Outputs built-in
- 4-DIN Module
- Digital Backlit Display
- Touch Screen Buttons
CT Features:
- 35mm Centres
- 21mm x 25mm Aperture
- 100-250A Primary Current
- 5A Secondary Current
- Secondary M4 Screw Terminals
- Accuracy Class 0.5, 1 or 3
- Mounting Foot or DIN Rail Mounted
This bundle includes 1pc of Eastron SDM630MCT-MOD-MID and 1pcs of CT335 3 phase Current Transformer
You will need to confirm what Current Transformer ratio you require before checkout, as per the options section below
Click Here For Product Datasheet
Click Here For User Manual
Click Here For Product Protocol
