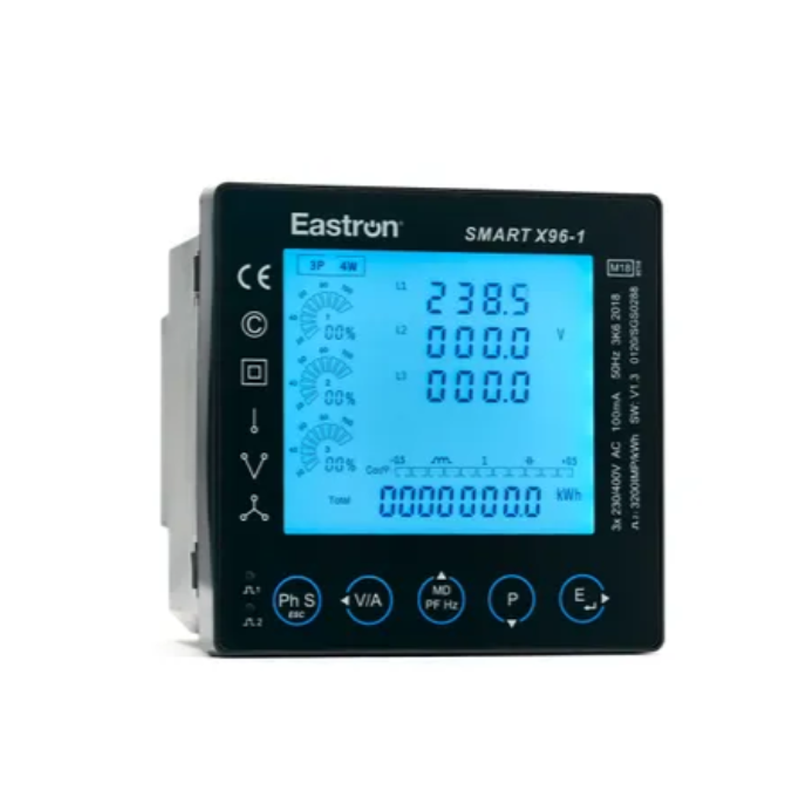

SMART X96-1-MID Panel Meter
£159.00
In Stock
Excluding VAT and Shipping
The prices displayed on these products exclude VAT and Shipping costs.
Free Shipping
Free standard shipping on orders over £500.00
Payment Protection Guaranteed
Learn More.
Request A Quote
Ordering for a project, why not speak to one of our advisors about quantity orders.
Simple Installation
Most of our meters are designed for commercial 100A applications, meaning they benefit from simple Live and Neutral installation.
Fast & Secure Shipping
JSG keeps an abundance of off the shelf items meaning we are able to fulfil orders within 48 hours.
Top Quality Products
With direct access to industry leading manufacturers we offer only the highest quality products.
Details
Product Details
Panel Metering
Our range of MID certified panel meters are suitable for any industrial installation.
Our Smart X96 range has been carefully designed and engineered to offer the highest level of accuracy and measurement parameters while maintaining their size and simplistic UX. Touch screen buttons and the slick black casing gives this series a futuristic, aesthetically pleasing look. Having gained a reputation over the last 10 years for their reliability, Eastron panel meters are the desired energy monitor for panel builders and contractors looking for quality and intelligent design.
Panel mounting for Industrial Install
Panel mounted electricity meters are designed for high level performance and are safe and fast to install. Our Panel mounted electricity meters are available in two product lines: the Smart x96-1 Easy Click series and the Smart x96-5 series.
PRODUCT FEATURES:
- Single Phase (1P2W) MID Certified
- Three Phase (3P3W) MID Certified
- Three Phase (3P4W) MID Certified
- Class 0.5s Accuracy
- Phase Sequence Detection
- Individual Harmonics upto 63rd
- /0.1A CT Operated
- RS485 Modbus RTU
- Dual Pulse Outputs
- 96mm² Panel Mounted (92mm² Cut Out)
- Digital Backlit Display
- Touch Screen Buttons
- Easy Click (no wiring on CTs)
The Smart X96-1 Digital Power Meter is a plug in design to improve efficiency of installation and eliminate wiring errors. The unit itself works in conjunction with 0.1A (100mA) current transformers, allowing an easy installation especially when retro-fitting. This model also features a Phase Summary screen, making it easy to view the Active Power, Voltage and Current of each phase all on the same screen.
This particular meter has proven to be very popular due to the detailed measurements it can provide, such as Power Factor, Max Demand Power & Individual Harmonic Distortion. Unlike other meters available on the market, this model has Pulse and Modbus communications built in, eradicating the requirement of purchasing extra modules. The Smart X96 Series is housed in a DIN 96mm² case meaning it can be door mounted in a 92mm² cutout. This specific model measures Voltage, Voltage THD, Current, Max Demand Current, Current THD, Frequency, Power Factor, Max Demand Power, Active Power, Reactive Power, Apparent Power, Total Active Energy, Import & Export Active Energy, Total Reactive Energy, Import & Export Reactive Energy.
We have invested in MID B&D certification for the SMART-X96 range, this proves the accuracy and quality of the product and allows it to be used for Billing Applications. Since April 2016, MID-approved Meters will be the only legal option when the measurements are to be used for billing. All of our MID-approved meters are certified here in the UK.
