Home /All Products /T24 Miniature Split Core Current Transformer 0.333mV (Milivolt Version)

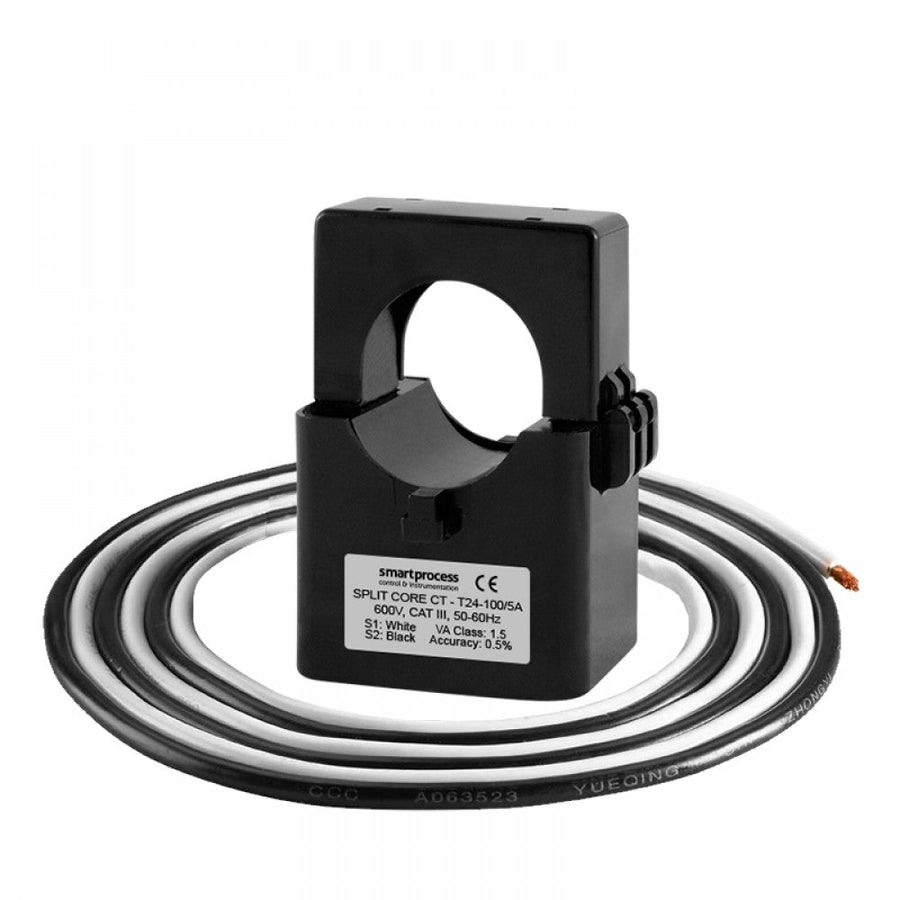

T24 Miniature Split Core Current Transformer 0.333mV (Milivolt Version)
T24 Miniature Split Core Current Transformer 0.333mV (Milivolt Version)
T24 Miniature Split Core Current Transformer 0.333mV (Milivolt Version)
T24 Miniature Split Core Current Transformer 0.333mV (Milivolt Version)
T24 Miniature Split Core Current Transformer 0.333mV (Milivolt Version)
Eastron

T24 Miniature Split Core Current Transformer 0.333mV (Milivolt Version)

SKU: T24-0.333mV
£30.00 In Stock
CT Ratio: 200A/0.333mV
Excluding VAT and Shipping
The prices displayed on these products exclude VAT and Shipping costs.
Free Shipping
Free standard shipping on orders over £500.00
Free Shipping

Shipping

We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose.

Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.

Payment Protection Guaranteed
Learn More.
Payment Protection Guaranteed

Payment Protection

All orders purchased through this store are protected via Shop Pay giving you the peace of mind you need to shop with us.

Request A Quote
Ordering for a project, why not speak to one of our advisors about quantity orders.
Simple Installation
Most of our meters are designed for commercial 100A applications, meaning they benefit from simple Live and Neutral installation.
Fast & Secure Shipping
JSG keeps an abundance of off the shelf items meaning we are able to fulfil orders within 48 hours.
Top Quality Products
With direct access to industry leading manufacturers we offer only the highest quality products.
Details

Product Details

What is a current transformer?
What is a current transformer?

CT (Current Transformer) meters are installed on any connections with a load greater than 100 Amps. They measure a fraction of the amps (current) passing through the connection and a multiplier is applied to this reading to reflect the actual amps.

When used with a CT operated meter these small devices are able to feed accurate real time data to the meter in order to display a guaranteed reading on energy consumption.

JSG Metering Solutions Single Phase Split Core Transformer With Busbar
How they work

Current Transformers open and close around a current carrying conductor and measure its current by determining the magnetic field around it, providing a quick measurement reading usually on a digital display without disconnecting or opening the circuit.

Product Features:

  • Split Core
  • 24mm Aperture
  • 100-300A Primary Current
  • 0.333mV Secondary Current
  • 1m Fly Lead (2.5mm Wire)
  • Accuracy Class 1

This particular T24 Split Core Current Transformer works in conjunction with any 0.333mV CT Operated Electricity Meters. The output on these CTs is in millivolts, as opposed to the traditional 5A secondary, which is much safer when installing. Due to the style of these Split Core Current transformers, you can easily install them without needing to break any conductors. You can use individual T24 CTs for Single Phase applications, you can also use 3pcs of these current transformers for Three Phase applications. The Aperture on this model accommodates 24mm Cable. The T24 is ideal for applications such as Distribution systems, Generator sets, Control Panels and Switchgears.
