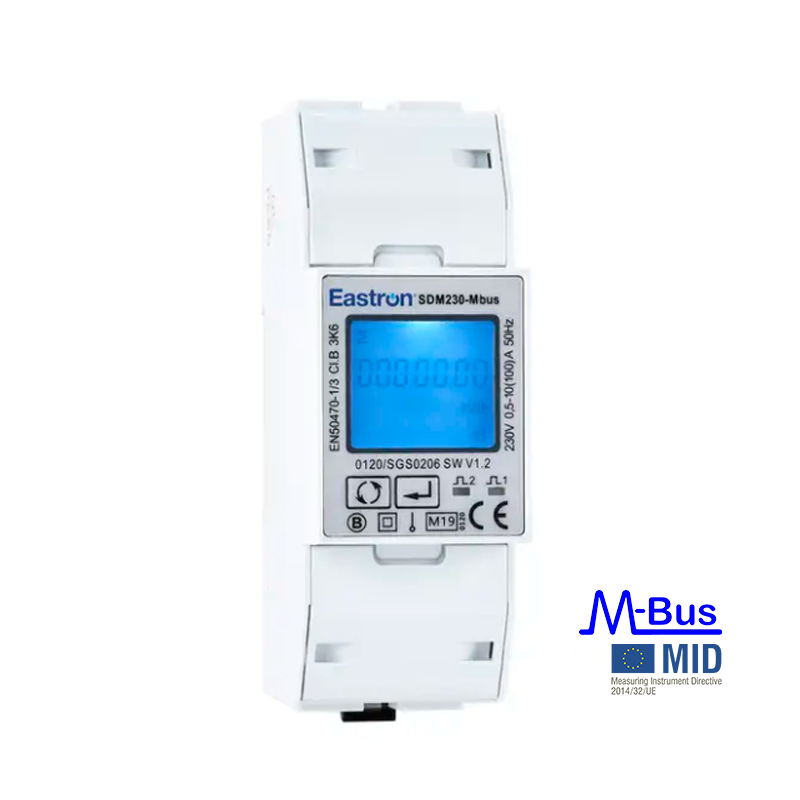

SDM230 series is an advanced digital single phase multi-function energy meter, which measures up to 100A direct load. The unit measures active energy, reactive energy, current, voltage, power, power factor, frequency, demand, etc. Bi-directional measurement makes this unit an ideal choice for Solar PV measurement. A remote communication port is provided, M-bus EN13757-3 and Communication parameters are password protected in setup mode. User can check data and set up the meter via the buttons on the front panel.
Technical Specification
- MID B&D Approved - 0120/SGS0198
- Single Phase (1P2W)
- 100A AC (Direct Connected)
- 230V AC
- Multifunction
- MBus Comms
- Dual Pulse Outputs

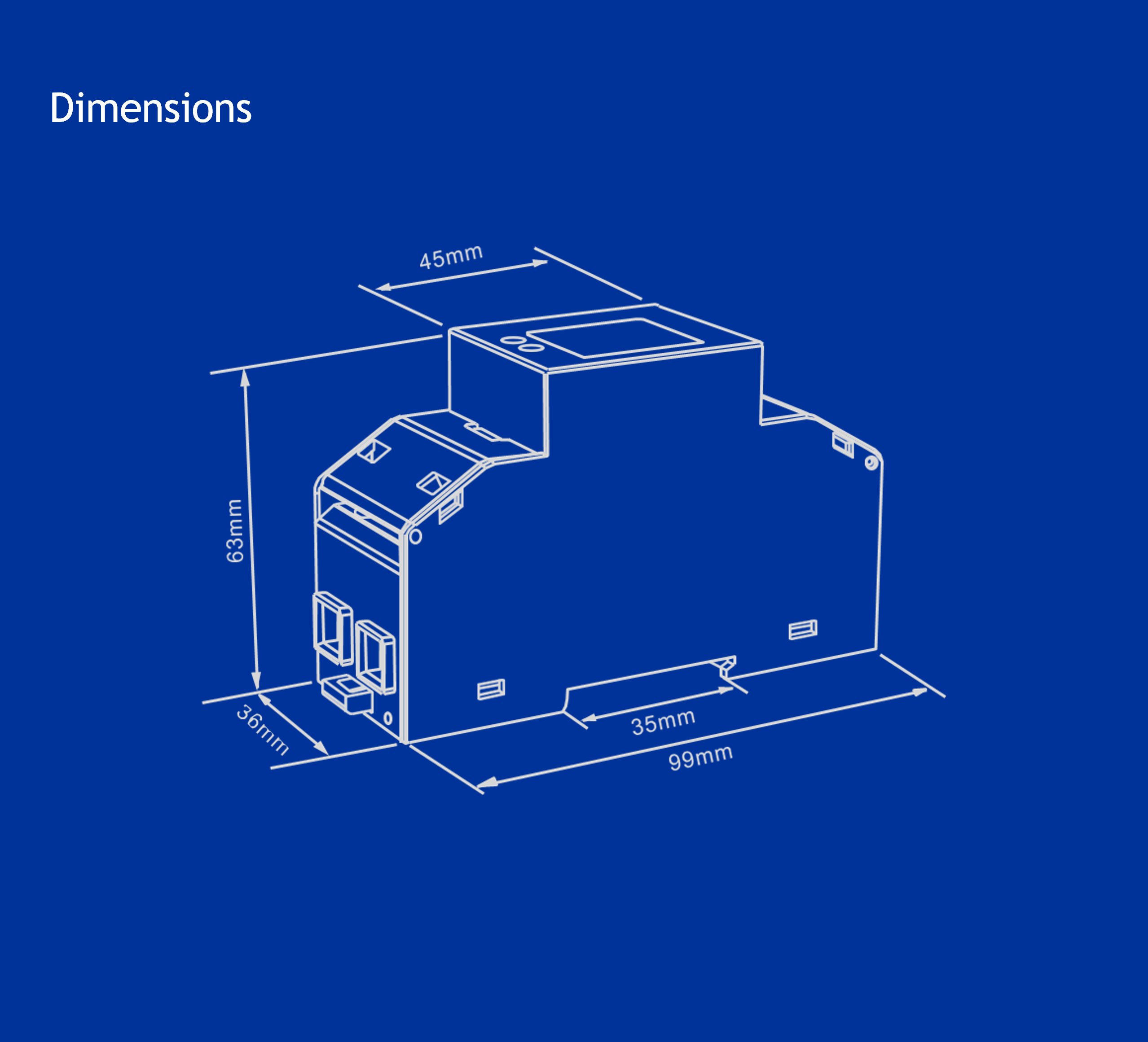

- 2-DIN Module
- Digital Backlit Display
