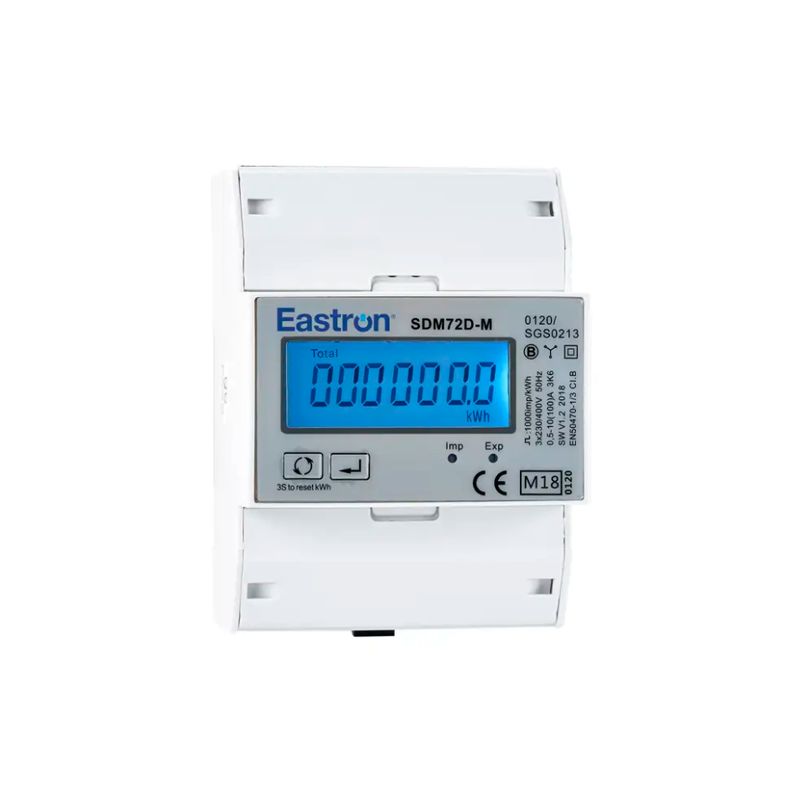

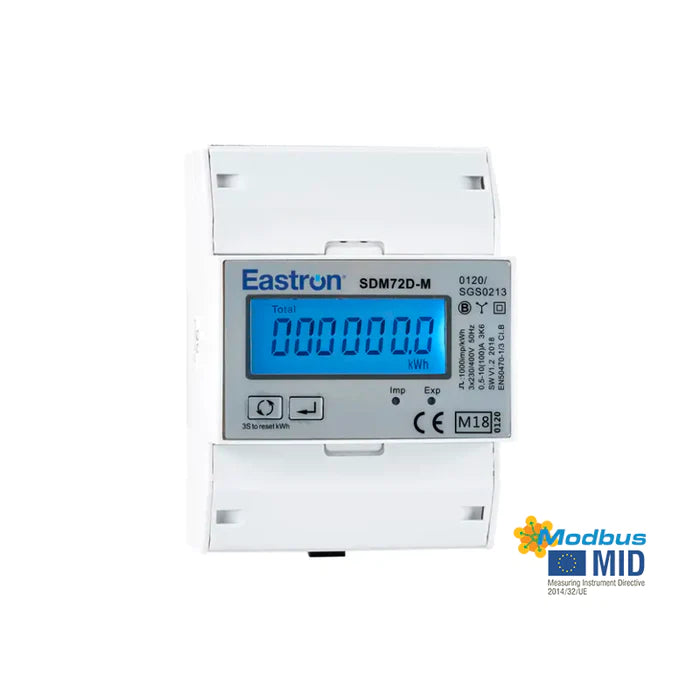

SDM72D-M-MID Three Phase Direct Connected Meter

Product Features: 100A Direct Connected Modbus RS485 communication Total Active Energy (kWh) Three Phase (3p4w) 400V +/- 20% Measured Voltage 1000imp/kWh Pulsed output LCD Display 6+1= 999999.9 MID B+D certified The SDM72D-M-MID Digital Power Meter works directly connected to a maximum load 100A AC circuit. This meter has been MID B&D...
SKU: SDM72D-M-MID
Vendor: Eastron
Availability: In Stock
Regular price
£99.00
Regular price
Sale price
£99.00
Subtotal:
£99.00

Excluding VAT and Shipping

The prices displayed on these products exclude VAT and Shipping costs.

Free Shipping

Free standard shipping on orders over £500.00

Shipping

We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.

Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.

Payment Protection Guarenteed

Learn More.

Payment Protection

All orders purchased through this store are protected via Shop pay giving you the piece of mind you need to shop with us

Request A Quote

Ordering for a project, why not speak to one of our advisors about quantity orders

10 customers are viewing this product

Product Features:

  • 100A Direct Connected
  • Modbus RS485 communication
  • Total Active Energy (kWh)
  • Three Phase (3p4w)
  • 400V +/- 20% Measured Voltage
  • 1000imp/kWh Pulsed output
  • LCD Display 6+1= 999999.9
  • MID B+D certified

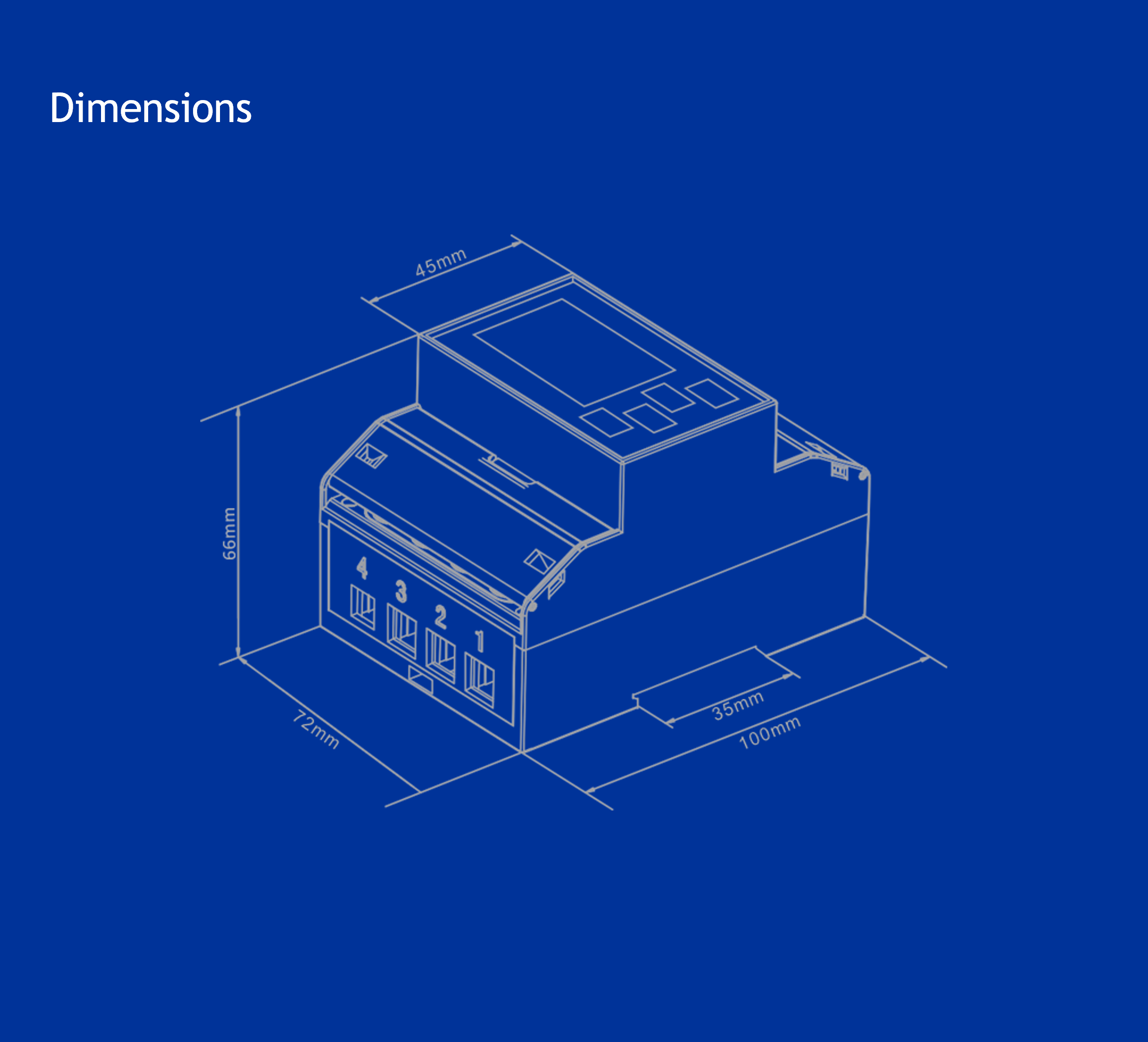

The SDM72D-M-MID Digital Power Meter works directly connected to a maximum load 100A AC circuit. This meter has been MID B&D Certified by SGS UK, proving both it’s accuracy and quality. This certification allows this model to be used for any sub-billing applications. Unlike other alternatives, this meter is housed in a 4 Module DIN rail case, meaning it takes up very little space. The SDM72D measures and displays Total Active Energy and can be remotely monitored with a pulse collector or using the RS485 Modbus Comms. This meter is a great cost-effective solution for any 3ph application in which you are just interested in basic readings, such as total active energy.

Click Here For Product Datasheet

Click Here For User Manual

Click Here For Product Protocol

SDM72D-M-MID Three Phase Direct Connected Meter

Vendor: Eastron

SDM72D-M-MID Three Phase Direct Connected Meter

JSG Metering Solutions LTD

Din Rail Metering

Our range of MID certified din rail meters are suitable for almost any LV application.

From our single phase 1 module meters all the way up to our three phase CT operated meters we can supply any type of din rail product either on its own or bespoke built into a pre wired enclosure for an out of the box solution.

JSG Metering Solutions Offers A Wide Range Of Din Rail Mounted Metering And Accessories

Din Rail mouting for simple install

DIN rail mounted electricity meters are designed for high level performance and are safe and fast to install. Our DIN rail mounted electricity meters are available in four product lines:

  • Single Phase SDM120 series
  • Single Phase SDM230 series
  • Three Phase SDM54 series
  • Three Phase SDM72D series
  • Three Phase SDM630 series
  • Three Phase SDM630MCT series
  • JSG Metering Solutions LTD

    Full metering solution

    Our full metering solutions means we can supply any type of meter directly to site ready for installation.

    Our fully trained warehouse team can program each meter before it leaves us so all you have to do is wire it in for a turnkey solution.
