Iskra

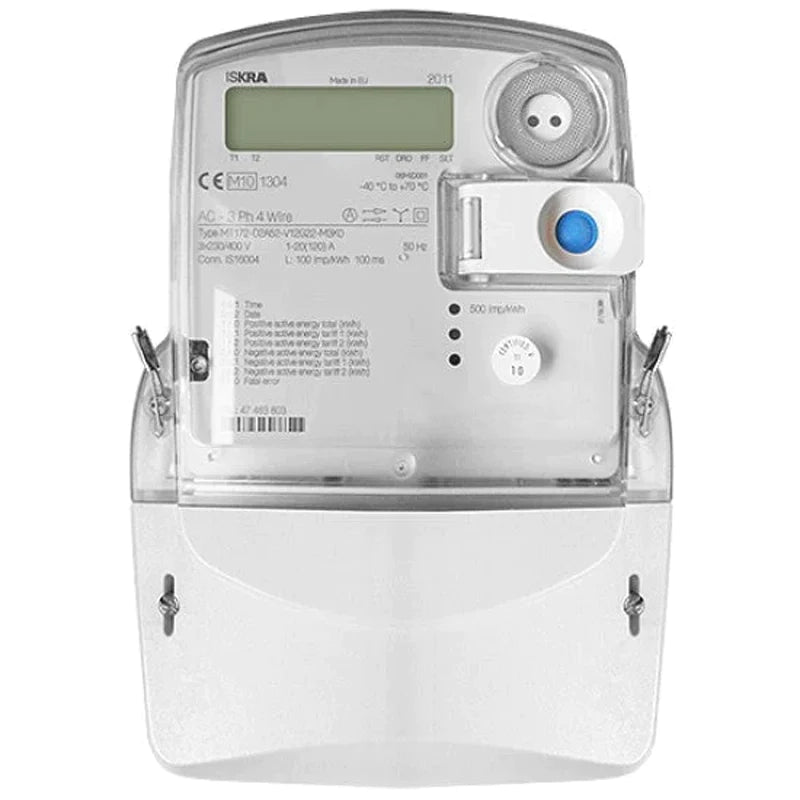

Iskra MT174 Three Phase Current Transformer Operated Meter
£115.00
In Stock
Excluding VAT and Shipping
The prices displayed on these products exclude VAT and Shipping costs.
Free Shipping
Free standard shipping on orders over £500.00
Payment Protection Guaranteed
Learn More.
Request A Quote
Ordering for a project, why not speak to one of our friendly advisors about quantity orders.
Simple Installation
Most of our meters are designed for commercial 100A applications, meaning they benefit from simple Live and Neutral installation.
Fast & Secure Shipping
JSG keeps an abundance of off the shelf items meaning we are able to fulfil orders within 48 hours.
Top Quality Products
With direct access to industry leading manufacturers we offer only the highest quality products.
Details
Product Details
Solar Generation Meter
JSG Metering stocks a large range of single phase & three phase meters, these meters support import export generation meaning they can be used on any solar PV system for measuring energy sent back to the grid.
If you generate renewable electricity in your home or business, you can feed back into the grid any electricity that you don't use. Under the Smart Export Guarantee (SEG) you will be paid for every unit of electricity that you feed back. You won't be paid for any that you use yourself.
How it works
You're likely most familiar with PV, which is utilized in solar panels. When the sun shines onto a solar panel, energy from the sunlight is absorbed by the PV cells in the panel. This energy creates electrical charges that move in response to an internal electrical field in the cell, causing electricity to flow.
Excess solar generated energy can be used in different ways, if you have an energy storage system you can store this excess electric to use at a high peak moment. Alternatively you can sell excess energy back to the national grid, you can be remunerated anywhere from £0.06p to £0.09p per kWh depending on who your energy provider is.
All programming must be done before dispatch
The Iskra MT174 is one of the most cost effective and versatile three phase meters on the market and can be configured to show a number of different electrical parameters to suit a wide variety of applications. These include billing for consumption, measuring imported and exported energy on renewable installations, logging dual rate readings for tariff’s such as Economy 7 as well as measuring most of the common electrical parameters such as Energy (kWh), Power (W), Current (I) & Voltage (V) to name just a few.
Equipped with a pulse output functionality, this meter allows for customization with various pulse lengths and periods, providing flexibility in data monitoring and integration with external systems.
For added convenience, this meter can be pre-programmed prior to dispatch using our dedicated software. Simply specify your desired settings in your order note, such as dual rate times or pulse output duration and frequency. This meter cannot be programmed on site.
Key Features:
- Extended terminal cover included
- Economy 7 Tariff capabilities (c\w internal time switch)
- Settable Multi-Tariffs (up to 4)
- Fully MID and OFGEM approved
- Pulsed outputs
- Optical port for configuration or meter reading
- Class B (1%)
Technical Data:
- Nominal Voltage: 3 x 230V
- Voltage withstand: 400V continuously
- 5 Amp, (current transformers required)
- Meter Phase: Three Phase
- Protection: IP54
- Polyphase connection
