Iskra

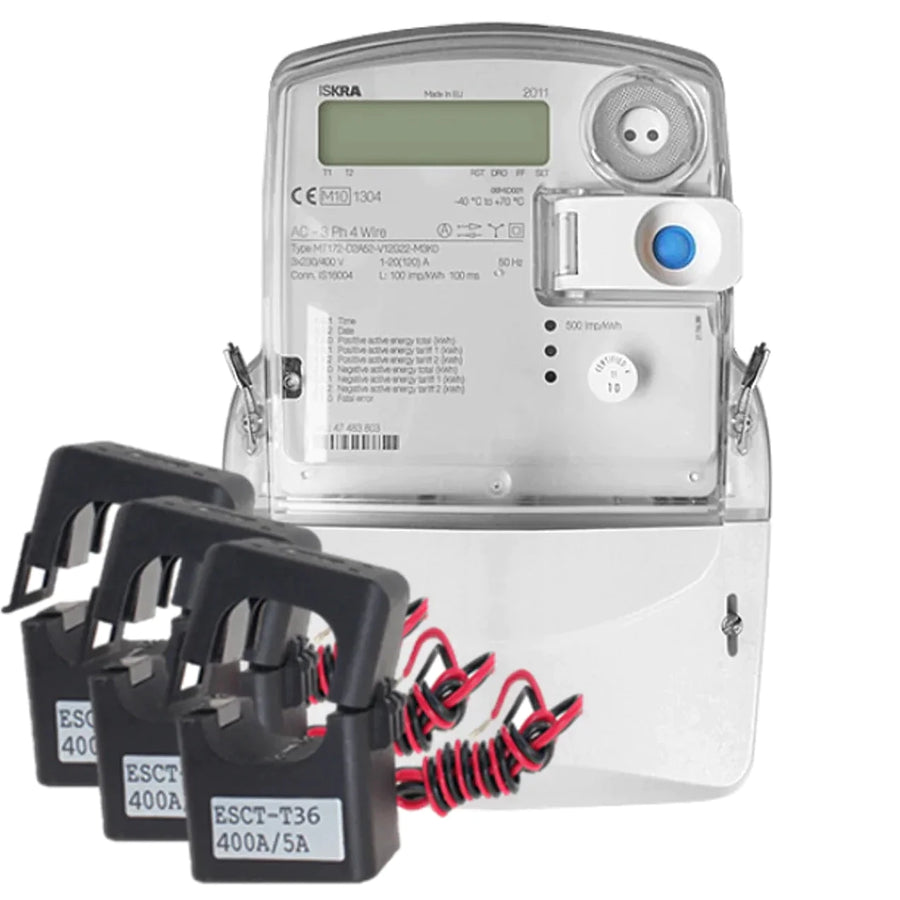

Bundle: Iskra MT174 & 3x T24(100-250amp)/T36(300-600amp) Current Transformers
£189.00£205.00-8%
In Stock
Excluding VAT and Shipping
The prices displayed on these products exclude VAT and Shipping costs.
Free Shipping
Free standard shipping on orders over £500.00
Payment Protection Guaranteed
Learn More.
Request A Quote
Ordering for a project, why not speak to one of our friendly advisors about quantity orders.
Simple Installation
Most of our meters are designed for commercial 100A applications, meaning they benefit from simple Live and Neutral installation.
Fast & Secure Shipping
JSG keeps an abundance of off the shelf items meaning we are able to fulfil orders within 48 hours.
Top Quality Products
With direct access to industry leading manufacturers we offer only the highest quality products.
Details
Product Details

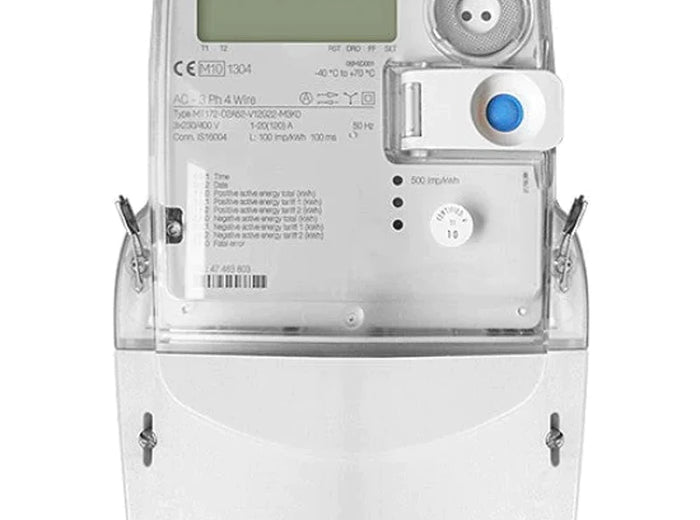

Solar Generation Meter
JSG Metering stocks a large range of single phase & three phase meters, these meters support import export generation meaning they can be used on any solar PV system for measuring energy sent back to the grid.
If you generate renewable electricity in your home or business, you can feed back into the grid any electricity that you don't use. Under the Smart Export Guarantee (SEG) you will be paid for every unit of electricity that you feed back. You won't be paid for any that you use yourself.
How it works
You're likely most familiar with PV, which is utilized in solar panels. When the sun shines onto a solar panel, energy from the sunlight is absorbed by the PV cells in the panel. This energy creates electrical charges that move in response to an internal electrical field in the cell, causing electricity to flow.
Excess solar generated energy can be used in different ways, if you have an energy storage system you can store this excess electric to use at a high peak moment. Alternatively you can sell excess energy back to the national grid, you can be remunerated anywhere from £0.06p to £0.09p per kWh depending on who your energy provider is.
All programming must be done before dispatch
The Isrka MT174 CT electronic three phase meters are designed for measurement and registration of active, reactive and apparent energy and demand in three phase four wire networks. They can be connected directly to the network. The metering and technical properties of the meters comply with the EN 50470-1 and -3 European standards for active energy meters, classes A and B, as well as with the IEC 620553-21 and IEC 62052-11 international standards for electronic meters of active energy for classes 1 and 2, and optionally with the IEC 62053-23 international standard for electronic meters of reactive energy for classes 2 and 3.
The Iskra MT174 meters are designed for mechanical environment M!, electromagnetic environment E2 and climatic environment -40 degrees ... +60 degrees, relative humidity 95% non condensing, closed location. These meters can be installed in any position and available in both CT operated or DC applications.
Technical Specification
- Multi-tariff c\w internal time switch
- 5 Amp, (current transformers required)
- OFGEM Approved
- Import/Export Energy
- Tariff control input
- Small size modern design
- Pulse output
- Max Demand
- Load Profile
- 100-250amp T24 current transformer: 24mm Aperture
- 300-600amp T36 current transformer: 36mm Aperture
