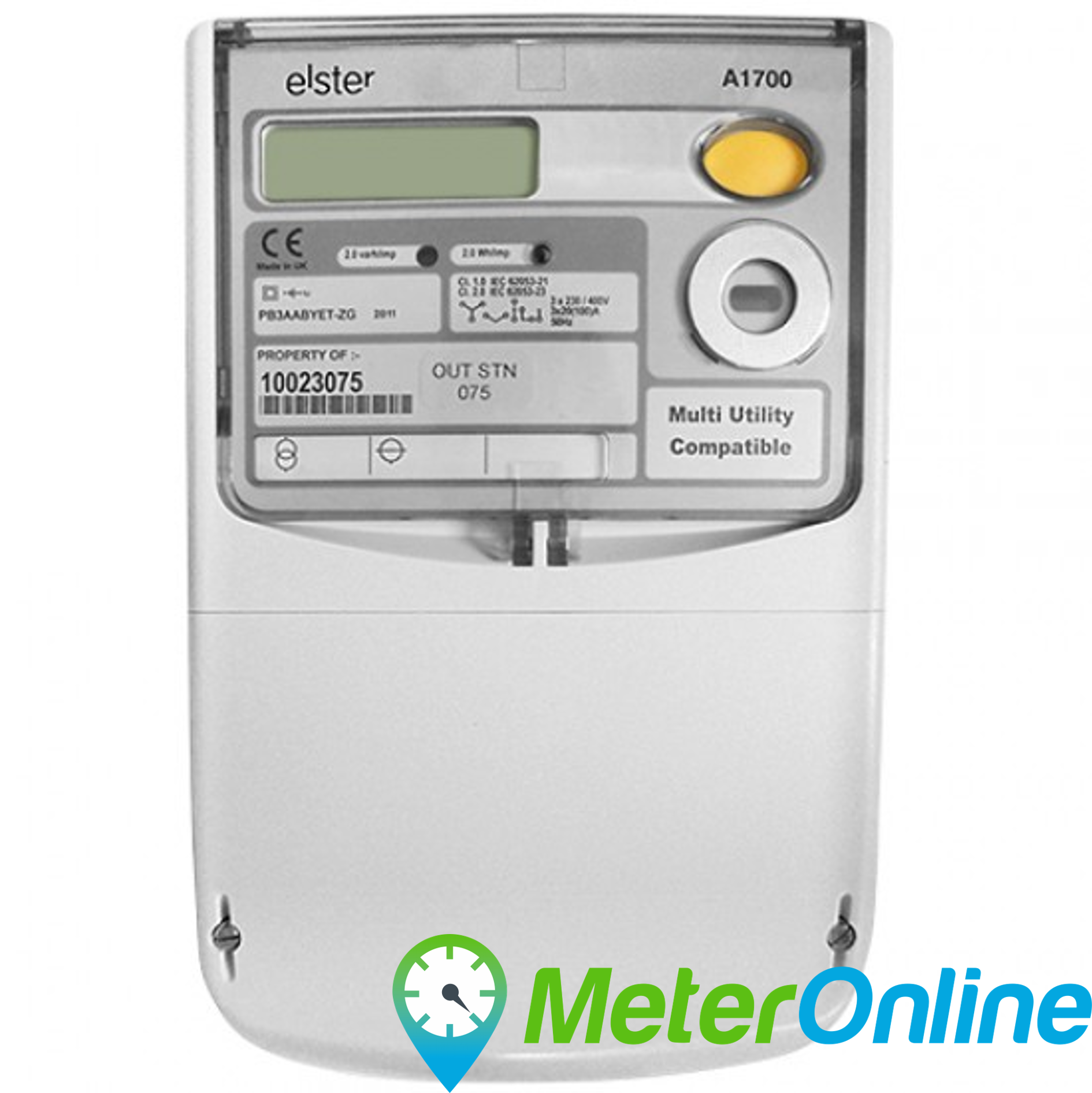

Elster A1700 Three Phase Direct Connected Multifunction Meter
The Elster A1700 comes in 2 variations both Direct Connected or Current Transformer Operated, This model is a Direct Connected 100amp Variant.
The Elster A1700 is of modular design, allowing one module for input or output and one module communications to be fitted underneath the terminal cover.
This Meter can be programmed or read either locally or remotely, Local communications is established via an optical communications port, using a PC or Hand Held Unit incorporating the IEC-62056-21
This Smart Meter Will Require Meter Online To Be Read Remotley Unless You Are Using An Existing AMR System
Technical Specification
- CT & CT/VT operated
- Three phase networks
- MID Approved
- Communications via optical port or communications module
- Plug in modules for extended functionality
- Comprehensive tariff structure
- 2 line, multilingual dot matrix display
- Instantaneous instrumentation values
- 2 module slots for extended functionality
- 900 or 450 days load profile data
- Accuracy Class 0.2s, 0.5s (CT only), 1 or 2
- Concealed Utility/Reset pushbutton
- High security design
Click Here for Product Datasheet
- Regular price
- £250.00
- Regular price
-
£300.00 - Sale price
- £250.00
- Unit price
- per
Why not monitor Online?
How it works
MeterOnline gives our customers the capability to have their own Smart Meters installed and read them via our cloud portal at any location and on any device from PC to iPhone. The underlying idea is to make the process simple and use standard smart meters from the major manufacturers for reliability, ease of installation and cost effectiveness. In the background the service takes care of, SIM card, airtime and communications security. In addition to automatically reading the meter, MeterOnline stores, processes and communicates the readings to simplify the customers end objective e.g. Claiming FIT, monitoring energy use or billing their customers.
