If you require a higher CT ratio please get in touch with us on 01268 773 766 Products Features:  Meter Information: Single Phase (1P2W) MID Certified Three Phase (3P3W) MID Certified Three Phase (3P4W) MID Certified Class 0.5s Accuracy Phase Sequence Detection Individual Harmonics upto 63rd /0.1A CT Operated RS485...
SKU: SMART-X96-1-MID-ESCT-RJ335-60/0.1A
Vendor: JSG Metering Solutions LTD
Availability: In Stock
Product Type: Panel Meter
£170.00
£189.50
£170.00
CT Ratio: 60/0.1A
Subtotal:
£170.00
The Terms & Conditions

Excluding VAT and Shipping

The prices displayed on these products exclude VAT and Shipping costs.

Free Shipping

Free standard shipping on orders over £500.00

Shipping

We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.

Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.

Payment Protection Guarenteed

Learn More.

Payment Protection

All orders purchased through this store are protected via Shop pay giving you the piece of mind you need to shop with us

Request A Quote

Ordering for a project, why not speak to one of our advisors about quantity orders
10 customers are viewing this product
Ask An Expert
Description

If you require a higher CT ratio please get in touch with us on 01268 773 766

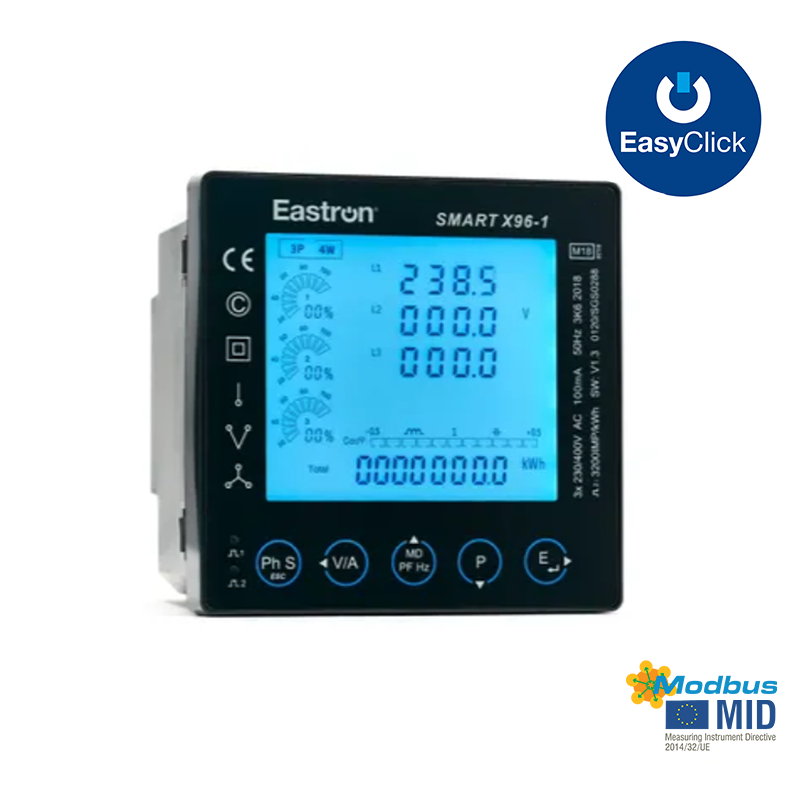

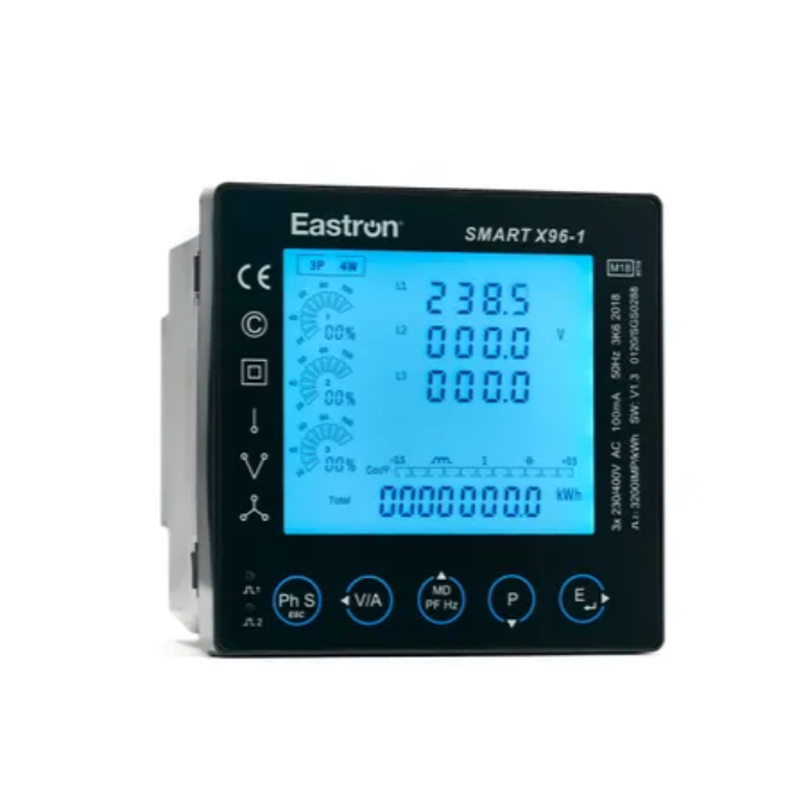

Products Features:

Meter Information:

  • Single Phase (1P2W) MID Certified
  • Three Phase (3P3W) MID Certified
  • Three Phase (3P4W) MID Certified
  • Class 0.5s Accuracy
  • Phase Sequence Detection
  • Individual Harmonics upto 63rd
  • /0.1A CT Operated
  • RS485 Modbus RTU
  • Dual Pulse Outputs

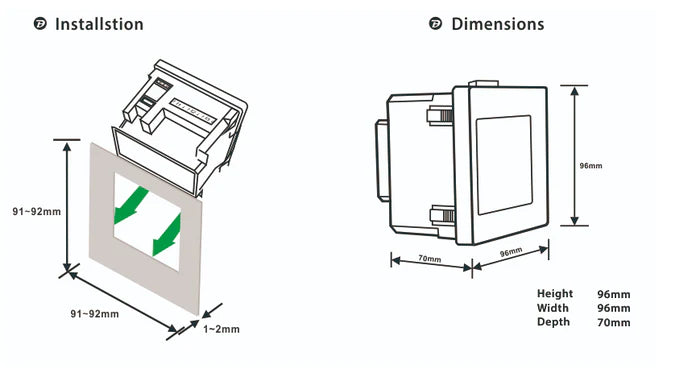

  • 96mm² Panel Mounted (92mm² Cut Out)
  • Digital Backlit Display
  • Touch Screen Buttons

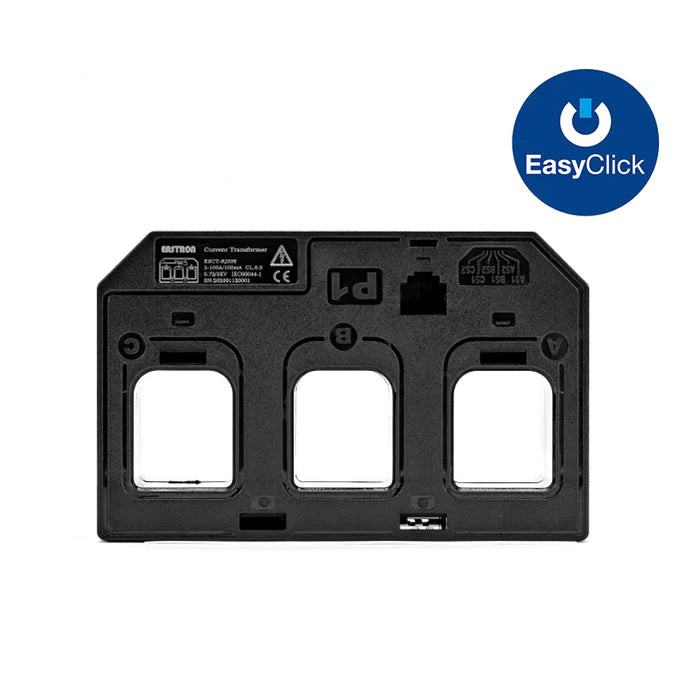

CT Information:

  • 3ph
  • Class 0.5 accuracy
  • 60-200A Primary Current
  • 0.1A Secondary Current (EasyClick)
  • RJ12 connector output
  • 35mm centers

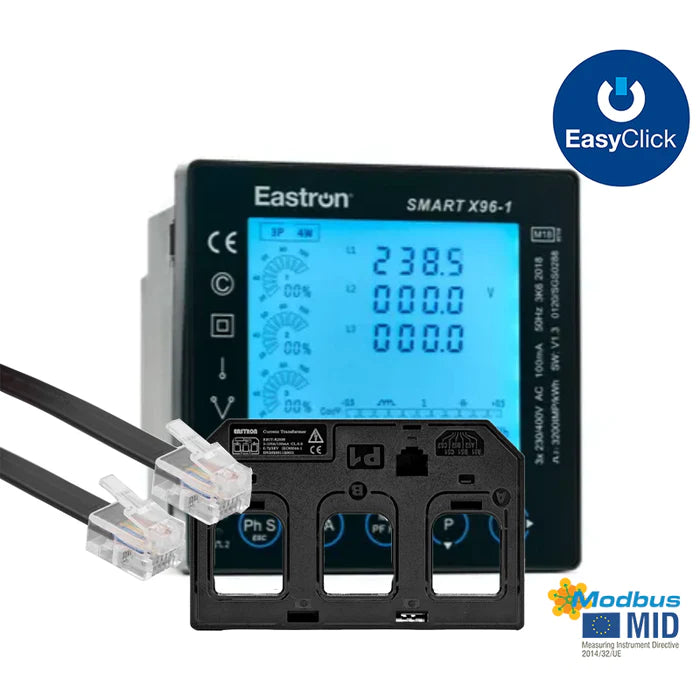

This bundle includes 1pc of Eastron SMART-X96-1-MID and 1pc of Eastron RJ335 Current Transformer

You will need to confirm what Current Transformer ratio you require before checkout, as per the options section below.

Meter Details:

Click Here For Product Datasheet

Click Here For User Manual

Read More
Bundle: SMART-X96-1-MID & 1 x ESCT-RJ335-(insert ratio)/0.1A 3ph CT

JSG Metering Solutions LTD

Bundle: SMART-X96-1-MID & 1 x ESCT-RJ335-(insert ratio)/0.1A 3ph CT

JSG Metering Solutions LTD

Panel Metering

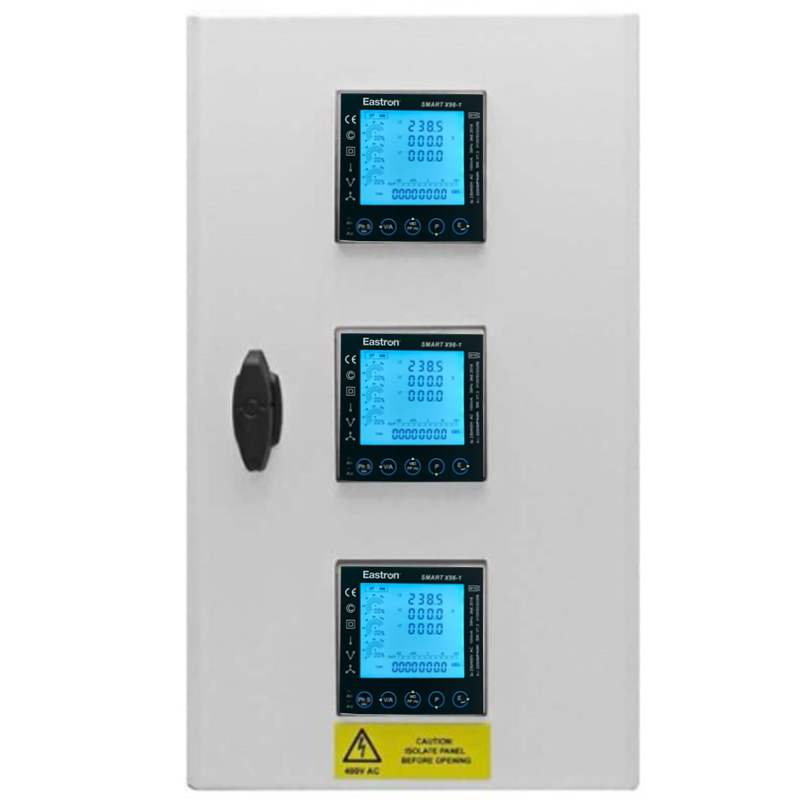

Our range of MID certified panel meters are suitable for any industrial installation.

Our Smart X96 range has been carefully designed and engineered to offer the highest level of accuracy and measurement parameters while maintaining their size and simplistic UX. Touch screen buttons and the slick black casing gives this series a futuristic, ascetically pleasing look. Having gained a reputation over the last 10 years for their reliability, Eastron panel meters are the desired energy monitor for panel builders and contractors looking for quality and intelligent design.

JSG Metering Solutions LTD

Panel mouting for Industrial Install

Panel mounted electricity meters are designed for high level performance and are safe and fast to install. Our Panel mounted electricity meters are available in two product lines:

  • Smart x96-1 Easy Click series
  • Smart x96-5 series
