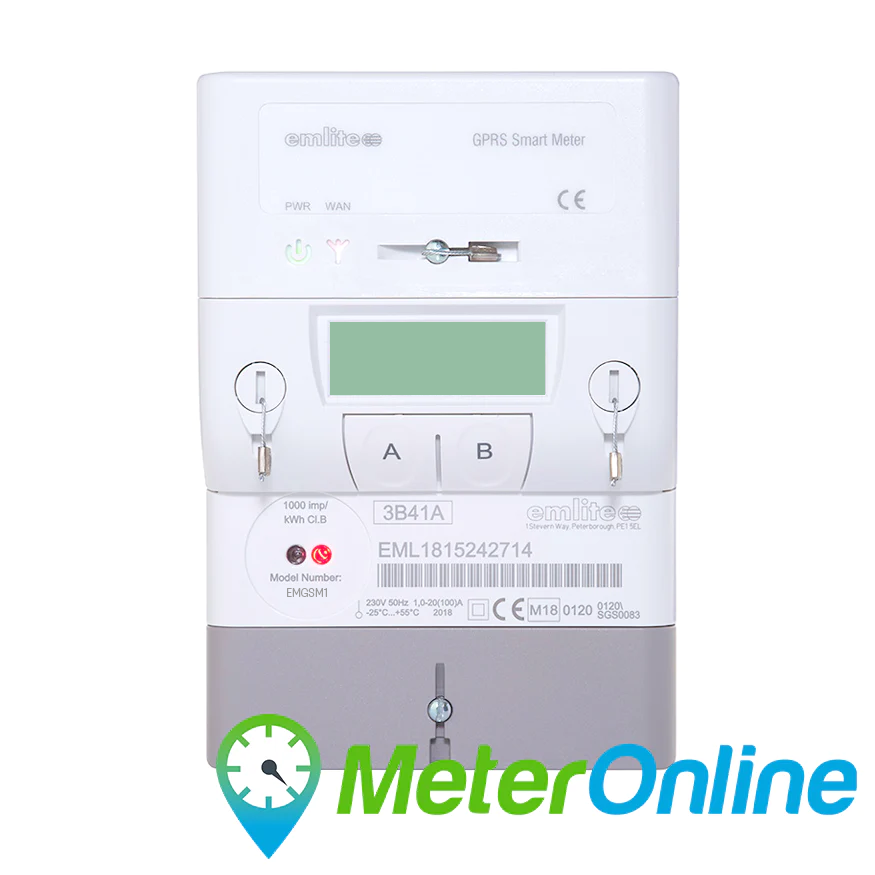

EmLite EMGSM1 Remote Monitoring Meter (MeterOnline Ready)

No Review
2 sold in last 8 hours
The EMGSM1 is designed specifically for the collection of micro-generation metering data, EMGSM1 provides remote collection of meter readings especially generation metering of wind, solar and any other renewable energy installations. The meter is of modular construction and allows a range of communication modules to be fitted to allow for future...
SKU: EMGSM1-MID
Vendor: Emlite
Availability: In Stock
Product Type: Single Phase Meter
Regular price
£189.99
Regular price
£200.00
Sale price
£189.99
Subtotal:
£189.99

Free Shipping

Free standard shipping on orders over £500.00

Shipping

We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.

Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.

Payment Protection Guarenteed

Learn More.

Payment Protection

All orders purchased through this store are protected via Shop pay giving you the piece of mind you need to shop with us

Request A Quote

Ordering for a project, why not speak to one of our advisors about quantity orders

10 customers are viewing this product

The EMGSM1 is designed specifically for the collection of micro-generation metering data, EMGSM1 provides remote collection of meter readings especially generation metering of wind, solar and any other renewable energy installations.

The meter is of modular construction and allows a range of communication modules to be fitted to allow for future developments in remote metering.

The meter is a fully MID approved device and can provide functionality over and above that required for generation metering making it suitable for many other applications.
Additional functionality includes Time-of-Use Rate Switching, Power Quality Recording, Active (kWh) and Reactive (kvarh) energy measurement across both import and export.

This Meter uses MeterOnline to display energy usage on an online portal at any location, on any device, or can be viewed via a CSV file sent to your desired email address. This online remote energy monitoring system could be used for Renewable Energy Generation Monitoring, Energy Management, Smart Meter Billing and more

To read these smart meters remotely you will need MeterOnline unless you have your own AMR system, You Can Register Your MeterOnline Meter Here

Technical Specification

  • Voltage Nominal voltage 220V—240V
  • Maximum 276V
  • Voltage withstand 415V continuously
  • Frequency Nominal frequency 50Hz
  • Frequency variation ± 5%
  • Current Basic current (Iref) 5, 10, 15 and 20A
  • Maximum (Imax) 100A
  • Metrology
  • Accuracy Active energy Class B, to EN 50470 1-3
  • Reactive energy Class 2, to IEC 62053 –23
  • Meets the essential requirements of the Measuring Instruments Directive (MID) 2004/22/EC
  • Direct Connected

Click Here For Product Datasheet

EmLite EMGSM1 Remote Monitoring Meter (MeterOnline Ready)

Vendor: Emlite

EmLite EMGSM1 Remote Monitoring Meter (MeterOnline Ready)

JSG Metering Solution Primary Supplier For MeterOnline Remote Metering Management Platform

Why not monitor Online?

Smart Meters mean that the days of driving for miles, crawling into a cupboard, dusting away the cobwebs and peering at a meter to obtain a reading are over. Smart Metering saves errors, time and money and is easy to do. This luxury is not only available to the major utility companies, if you already have generation meters on Solar PV systems or sub-meters in industrial units it is a simple matter to replace them with a Smart Meter that can be read via MeterOnline. Or if it is a new project we can supply the Smart Meters to fit from day one.

Using JSG Metering Solutions MeterOnline Management Platform Landlords Can Remote Monitor Any GPRS Meter They Own In Real Time From The Comfort Of Their Own Home

How it works

MeterOnline gives our customers the capability to have their own Smart Meters installed and read them via our cloud portal at any location and on any device from PC to iPhone. The underlying idea is to make the process simple and use standard smart meters from the major manufacturers for reliability, ease of installation and cost effectiveness. In the background the service takes care of, SIM card, airtime and communications security. In addition to automatically reading the meter, MeterOnline stores, processes and communicates the readings to simplify the customers end objective e.g. Claiming FIT, monitoring energy use or billing their customers.

Over the years we have become a leading metering service provider.

Accessibility is key to our cloud portal.

It’s the simple solution, fit the meter, read it via MeterOnline
