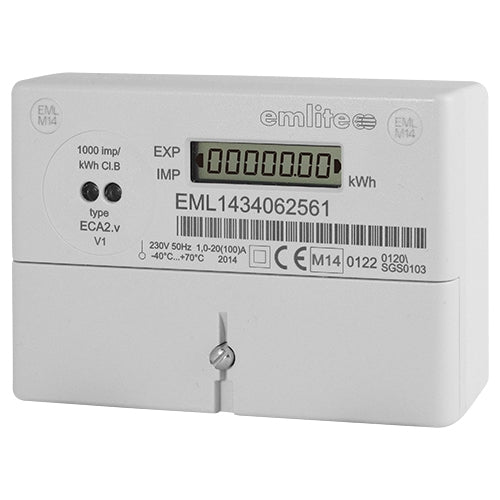

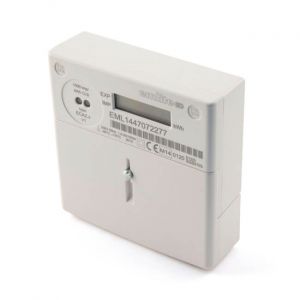

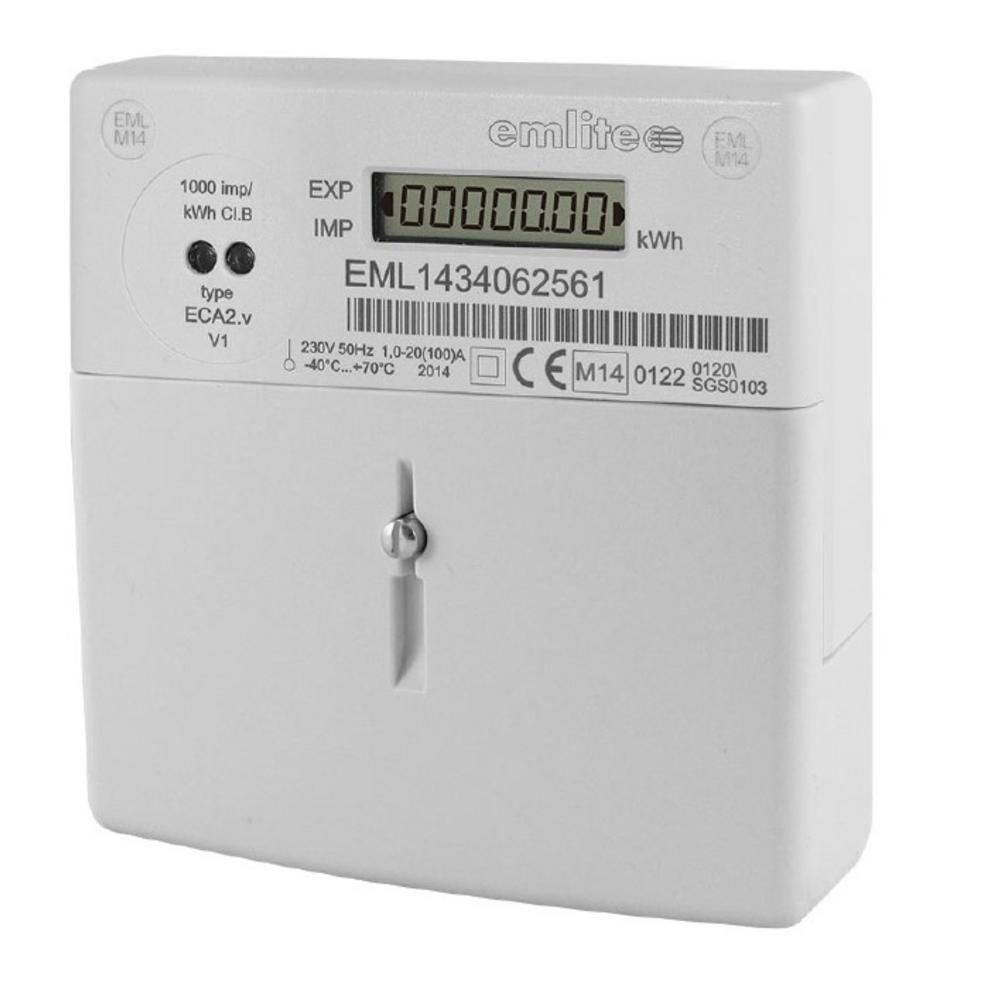

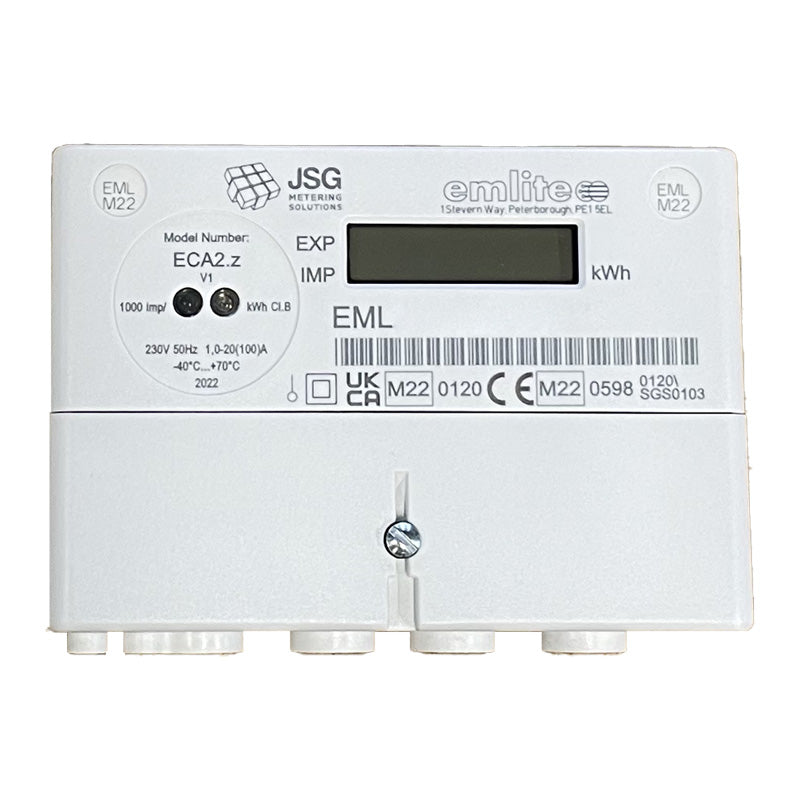

Introducing the Emlite Dragonfly (also known as ECA2) single phase meter - a compact and affordable solution designed for a wide range of metering applications.
Compliant with the Measuring Instruments Directive (MID), this wall-mounted meter ensures exceptional accuracy, making it ideal for both billing purposes and consumption monitoring in single phase power supplies.

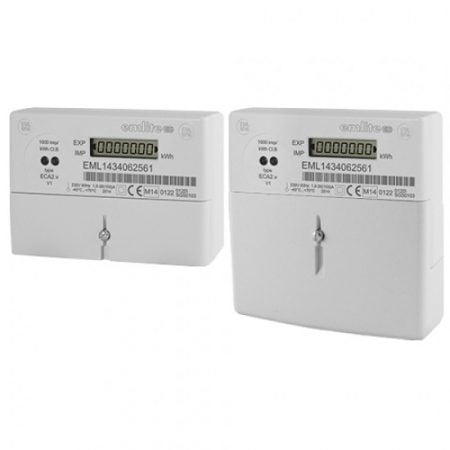

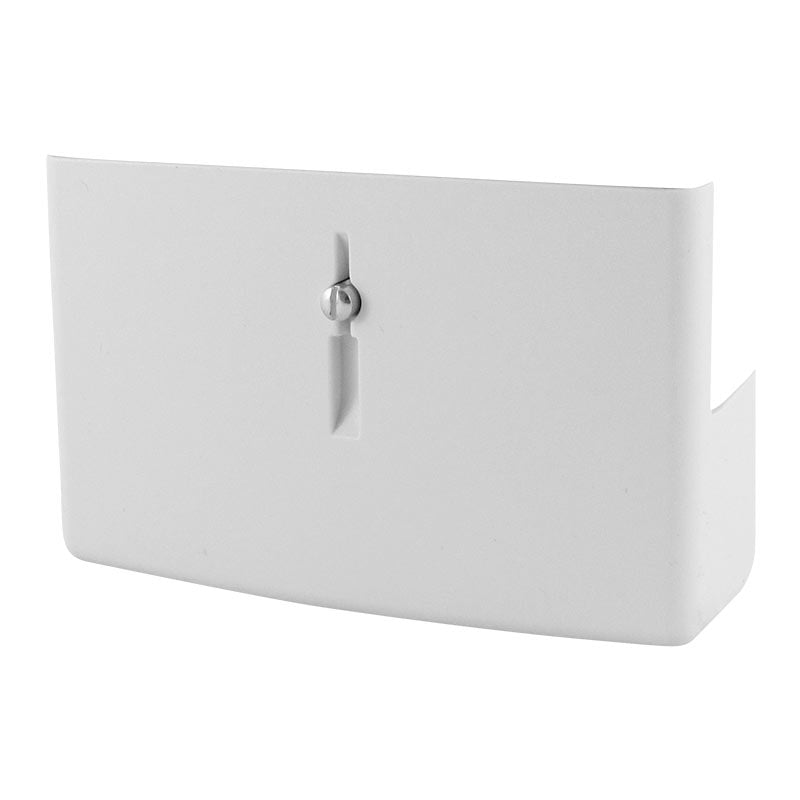

To safeguard against unintended or intentional tampering, this meter is equipped with our single phase security kit. This comprehensive kit includes four meter collars to securely fasten your meter tails, along with a meter seal that effectively prevents unauthorized access to the terminals.
This Single Phase Check Meter comes in both No Pulse & Pulse Output Variations as well as an option to have import and export.
Technical Specification
- Nominal Voltage Un 220-240V, 120V
- Single Phase Network
- 100A Direct Connected
- Voltage Range 80-115%Un
- Voltage Withstand 415V Continuous
- Nominal Frequency 50/60Hz
- Pulsed output 1 imp per Wh (1000 per kWh)
- Frequency Variation +/- 2%
- Direct Connection Ib 5, 10, 15, 20A
- Imax 40, 60, 80, 100A
- Starting Current IEC 0.004Ib
- Max Measuring Range 20mA up to 100A
-
Measuring Accuracy IEC 62053-21 Class 1 or 2
-
IEC 62053-23 Class 2 or 3
-
Max Measuring Range 20mA up to 100A
- Approvals Quality Manufactured to ISO 9001:1994
- Reference Standards IEC 62052-11, IEC 62053-21, IEC 62053-23
Click Here For Product Datasheet Of All Varations
