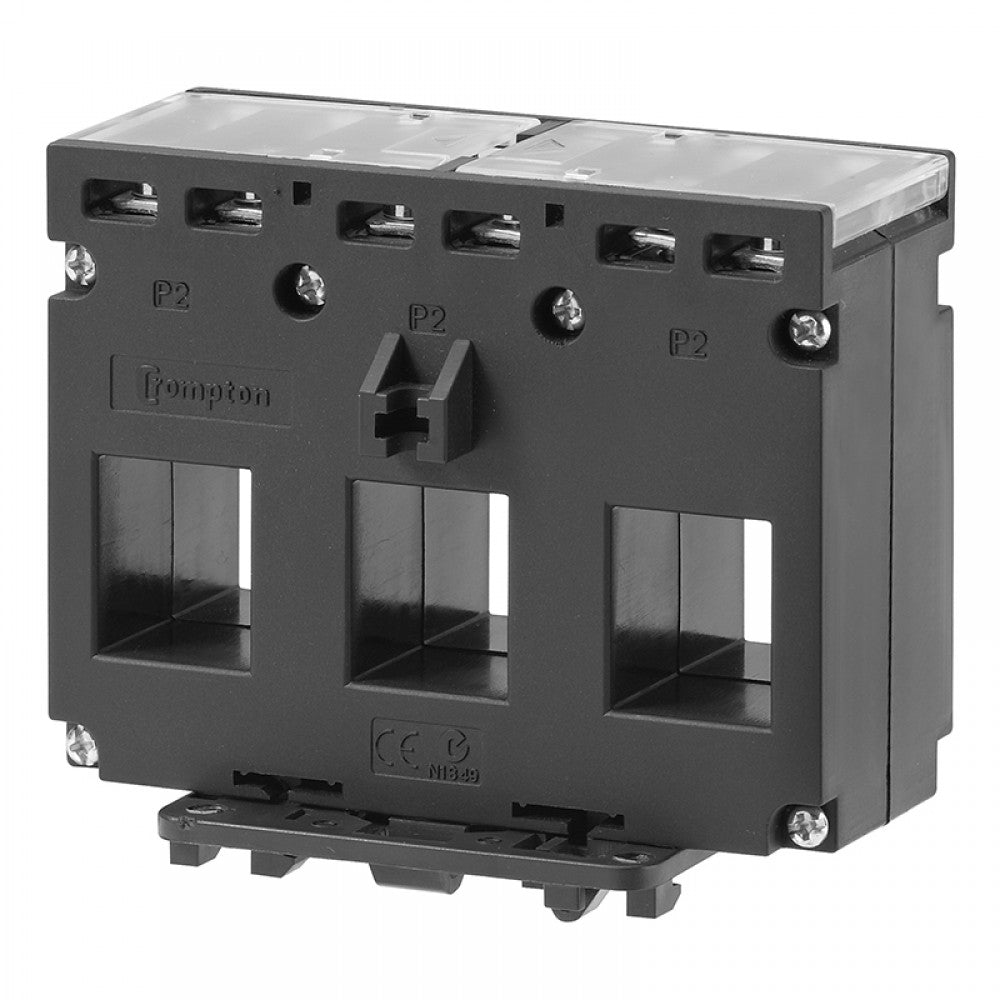

M3N1-35 Three Phase Solid Core Current Transformer (100-250A) /5A

No Review
2 sold in last 8 hours

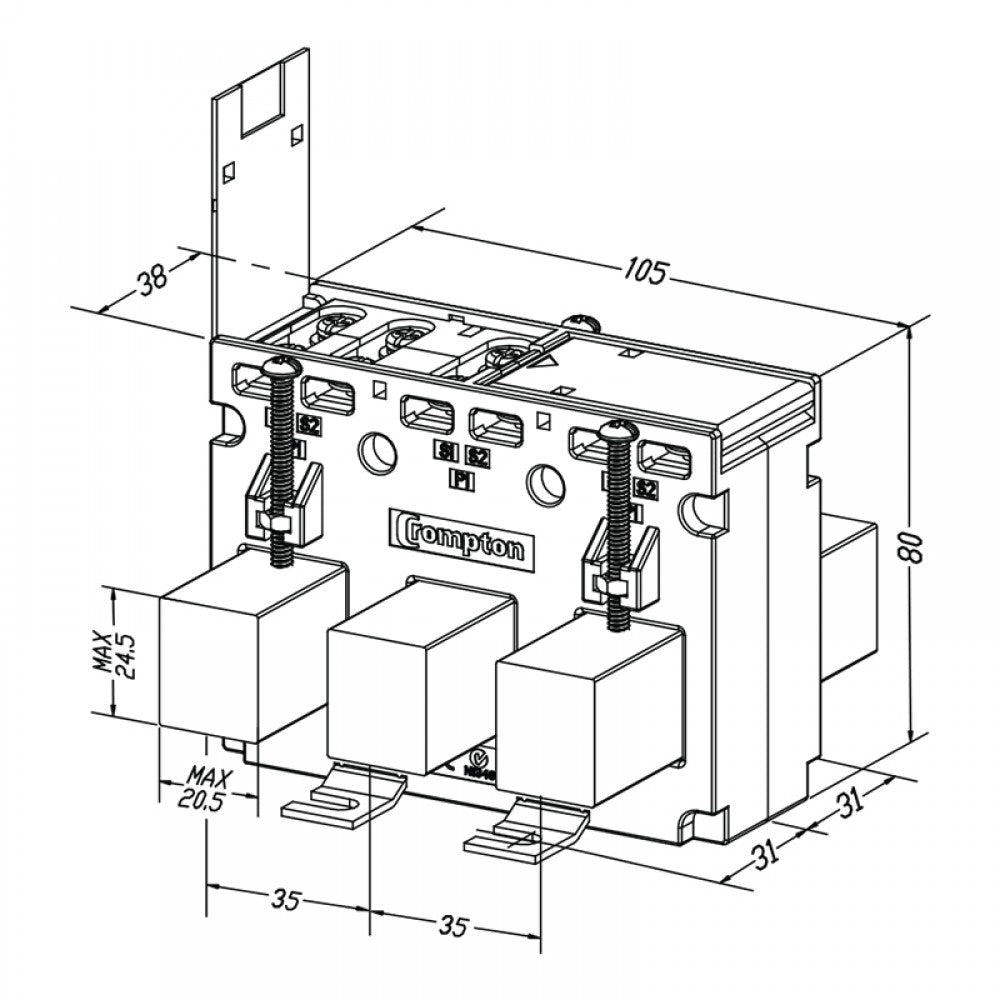

Product Features: 35mm Centres 20.5mm x 24.5mm Aperture 100-250A Primary Current 5A Secondary Current Secondary M4 Screw Terminals Accuracy Class 0.5, 1 or 3 Busbar or DIN Rail Mounted The M3N1 Range of 3-in-1 Current Transformers from Crompton Instruments combines three traditional Current Transformers into one molded case. These can...
SKU: M3N1-35-100/5A
Availability: In Stock
Product Type: Three Phase Block CT
Regular price
Regular price
Sale price
CT Ratio: 100/5A

Excluding VAT and Shipping

The prices displayed on these products exclude VAT and Shipping costs.

Free Shipping

Free standard shipping on orders over £500.00


We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.

Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.

Payment Protection Guarenteed

Learn More.

Payment Protection

All orders purchased through this store are protected via Shop pay giving you the piece of mind you need to shop with us

Request A Quote

Ordering for a project, why not speak to one of our advisors about quantity orders

10 customers are viewing this product
M3N1-35 Three Phase Solid Core Current Transformer (100-250A) /5A

Vendor: Smart Process & Control LTD

M3N1-35 Three Phase Solid Core Current Transformer (100-250A) /5A

JSG Metering Solutions LTD

What is a current transfomer?

CT (Current Transformer) meters are installed on any connections with a load greater than 100 Amps. They measure a fraction of the amps (current) passing through the connection and a multiplier is applied to this reading to reflect the actual amps.

When used with a CT operated meter these small devices are able to feed accurate real time data to the meter in order to display a guaranteed reading on energy consumption.

JSG Metering Solutions Single Phase Split Core Transformer With Busbar

How they work

Current Transformers open and close around a current carrying conductor and measure its current by determining the magnetic field around it, providing a quick measurement reading usually on a digital display without disconnecting or opening the circuit.
