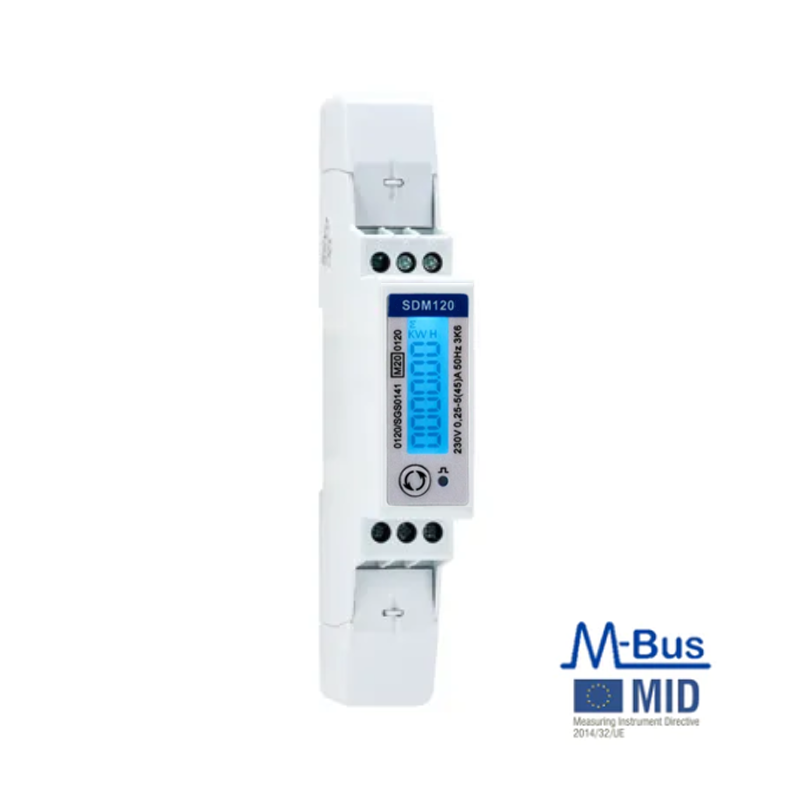

SDM120-Mbus-MID Digital Single Phase Meter

No Review
2 sold in last 8 hours
The SDM120-MBUS-MID is a Single Phase Digital Power Meter that measures a range of parameters in a 45A AC Circuit, removing the need for additional current transformers. This particular meter has proven to be very popular due to how cost-effective it is. Unlike other meters available on the market, this...
SKU: SDM120MBUS
Vendor: Eastron
Availability: In Stock
Product Type: Single Phase Meter
Regular price
£62.00
Regular price
Sale price
£62.00
Subtotal:
£62.00

Excluding VAT and Shipping

The prices displayed on these products exclude VAT and Shipping costs.

Free Shipping

Free standard shipping on orders over £500.00

Shipping

We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.

Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.

Payment Protection Guarenteed

Learn More.

Payment Protection

All orders purchased through this store are protected via Shop pay giving you the piece of mind you need to shop with us

Request A Quote

Ordering for a project, why not speak to one of our advisors about quantity orders

10 customers are viewing this product

The SDM120-MBUS-MID is a Single Phase Digital Power Meter that measures a range of parameters in a 45A AC Circuit, removing the need for additional current transformers. This particular meter has proven to be very popular due to how cost-effective it is. Unlike other meters available on the market, this model has Pulse and MBUS communications built in, eradicating the requirement of purchasing extra modules. The SDM120 Series is housed in a 1-DIN (17.5mm) case meaning it is compact and space-saving. This specific model measures Voltage, Current, Power Factor, Active Power, Reactive Power, Apparent Power, Total Active Energy, Import & Export Active Energy.

We have invested in MID B&D certification for the SDM120-MBUS-MID, this proves the accuracy and quality of the product and allows it to be used for Billing Applications. As of April 2016, MID approved Meters are the only legal option when the measurements are to be used for billing. All of our MID approved meters are certified here in the UK.

Technical Specification
  • MID B&D Approved - 0120/SGS0221
  • Single Phase (1P2W)
  • 45A AC (45A Direct Connected)
  • 230V AC
  • Mbus Communication
  • Dual Pulsed Outputs
  • 1-DIN Module
  • Digital Backlit Display
  • Multi-functional parameters
SDM120-Mbus-MID Digital Single Phase Meter

Vendor: Eastron

SDM120-Mbus-MID Digital Single Phase Meter

JSG Metering Solutions LTD

Din Rail Metering

Our range of MID certified din rail meters are suitable for almost any LV application.

From our single phase 1 module meters all the way up to our three phase CT operated meters we can supply any type of din rail product either on its own or bespoke built into a pre wired enclosure for an out of the box solution.

JSG Metering Solutions Offers A Wide Range Of Din Rail Mounted Metering And Accessories

Din Rail mouting for simple install

DIN rail mounted electricity meters are designed for high level performance and are safe and fast to install. Our DIN rail mounted electricity meters are available in four product lines:

  • Single Phase SDM120 series
  • Single Phase SDM230 series
  • Three Phase SDM54 series
  • Three Phase SDM72D series
  • Three Phase SDM630 series
  • Three Phase SDM630MCT series
  • JSG Metering Solutions LTD

    Full metering solution

    Our full metering solutions means we can supply any type of meter directly to site ready for installation.

    Our fully trained warehouse team can program each meter before it leaves us so all you have to do is wire it in for a turnkey solution.
