No Review
2 sold in last 8 hours

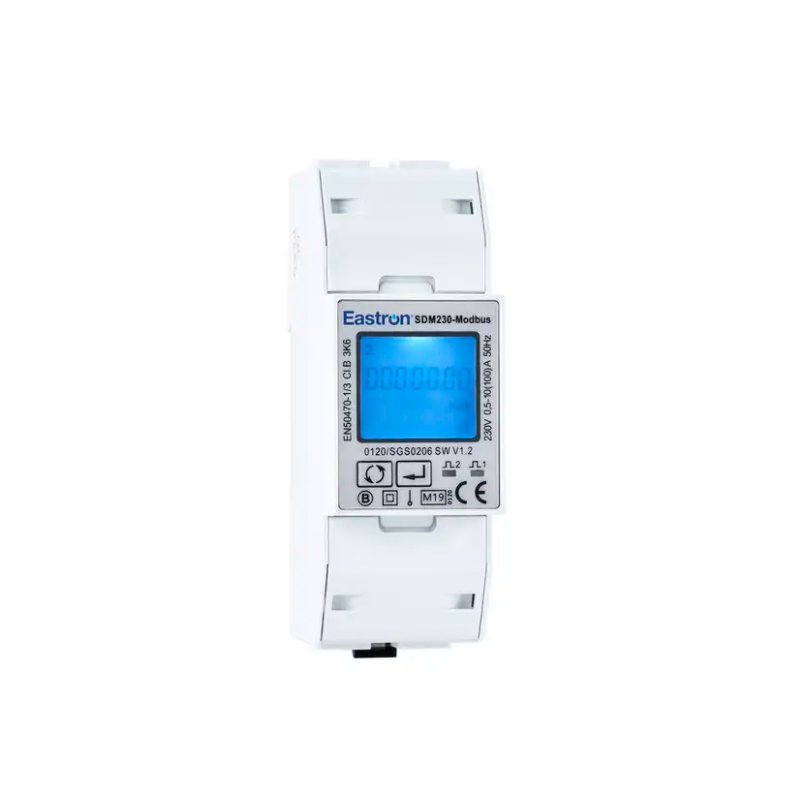

SDM230 series is an advanced digital single phase multi-function energy meter, which measures up to 100A direct load. The unit measures active energy, reactive energy, current, voltage, power, power factor, frequency, demand, etc. Bi-directional measurement makes this unit an ideal choice for Solar PV measurement. A remote communication port is...
SKU: SDM230-MOD
Vendor: Eastron
Availability: In Stock
Product Type: Single Phase Meter
£60.00
£60.00
Subtotal:
£60.00
The Terms & Conditions

Excluding VAT and Shipping

The prices displayed on these products exclude VAT and Shipping costs.

Free Shipping

Free standard shipping on orders over £500.00

Shipping

We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.

Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.

Payment Protection Guarenteed

Learn More.

Payment Protection

All orders purchased through this store are protected via Shop pay giving you the piece of mind you need to shop with us

Request A Quote

Ordering for a project, why not speak to one of our advisors about quantity orders
10 customers are viewing this product
Ask An Expert
Description

SDM230 series is an advanced digital single phase multi-function energy meter, which measures up to 100A direct load. The unit measures active energy, reactive energy, current, voltage, power, power factor, frequency, demand, etc. Bi-directional measurement makes this unit an ideal choice for Solar PV measurement. A remote communication port is provided, RS485 Modbus RTU and Communication parameters are password protected in setup mode. User can check data and set up the meter via the buttons on the front panel.This Series has been assessed and certified as meeting the requirements of EC Directive 2004/22/EC. The EC Type Examination Certificate Number is 0120/SGS0206.

Technical Specification

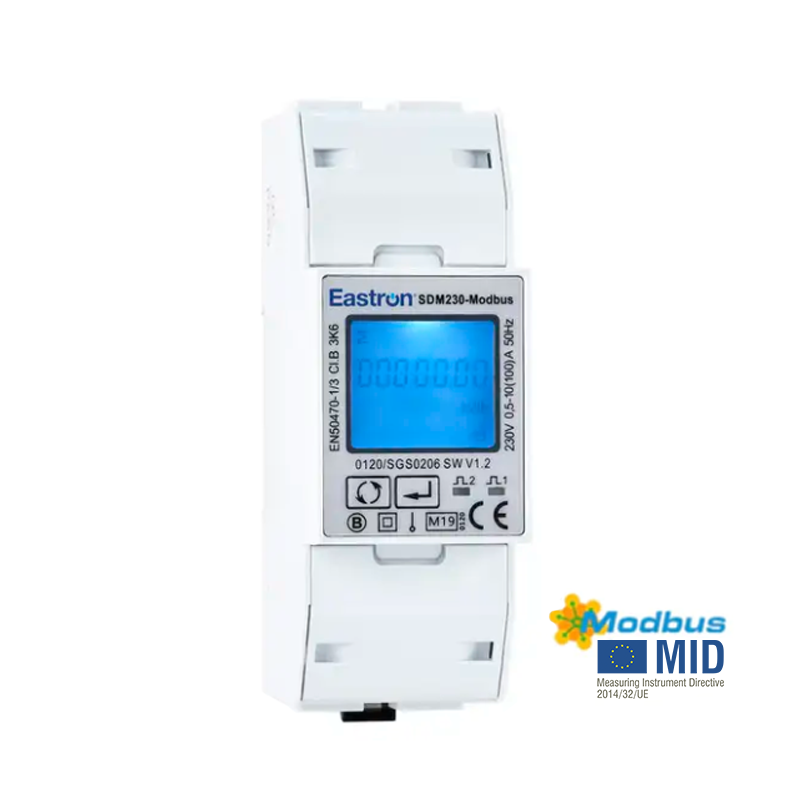

  • MID B&D Approved - 0120/SGS0198
  • Single Phase (1P2W)
  • Multifunction
  • 100A AC (Direct Connected)
  • 230V AC
  • RS485 Modbus RTU
  • Dual Pulse Outputs

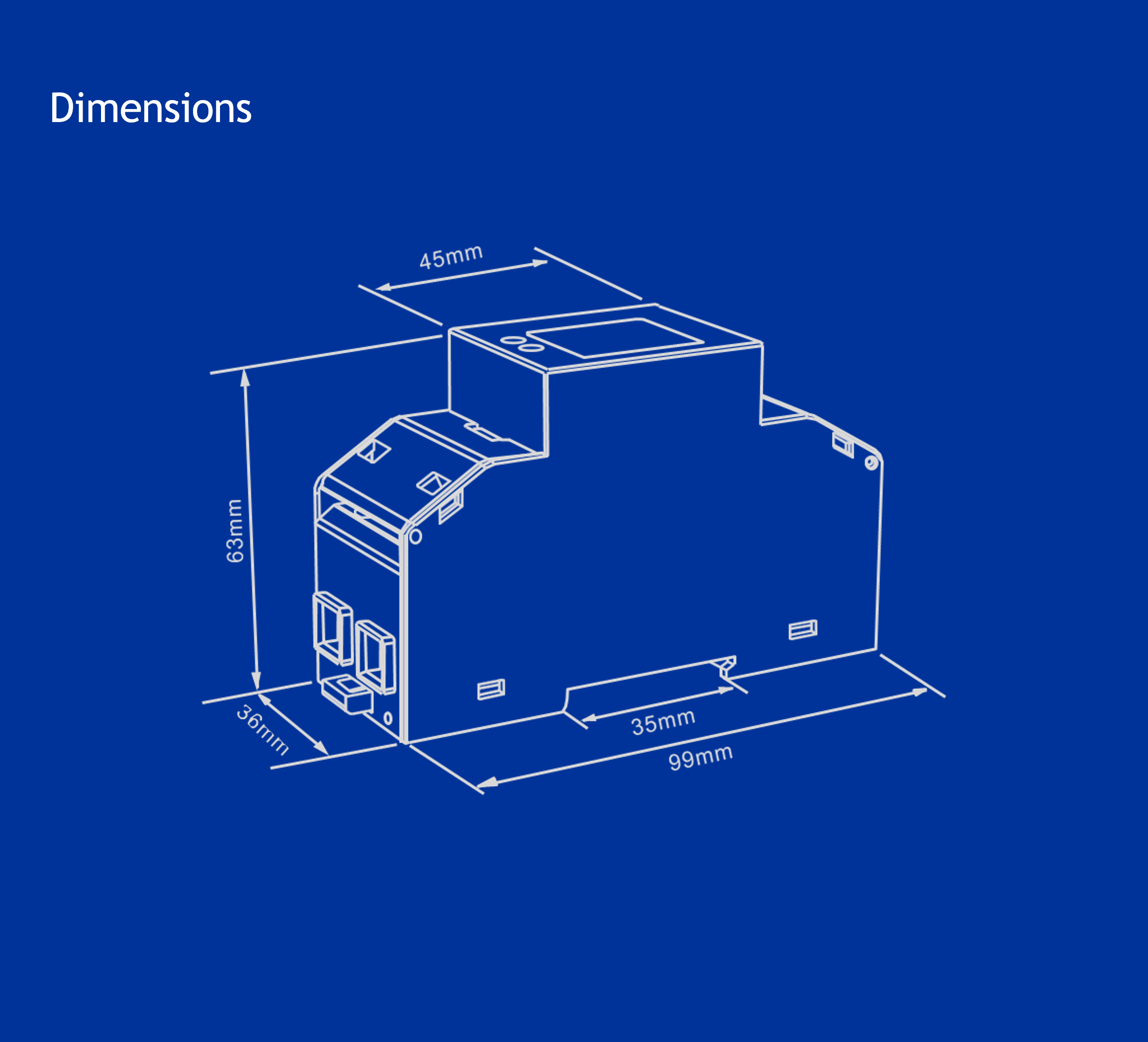

  • 2-DIN Module
  • Digital Backlit Display
  • 4 Measurement Modes for kW Readings
