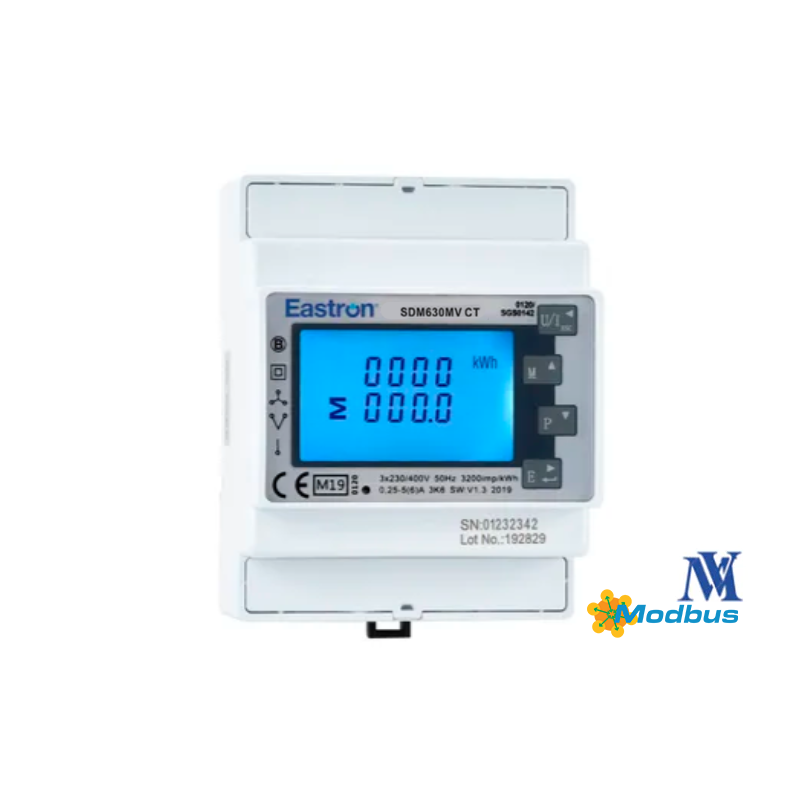

SDM630MCT-Mv-MID Three Phase CT Operated Meter

No Review
2 sold in last 8 hours
The SDM630MCT-MV Digital Power Meter can be configured through the password-protected set up menu to work in Single or Three Phase circuits. The unit itself works in conjunction with 333mV current transformers, allowing an easy installation especially when retro-fitting. We have also designed a simple, but effective panel-mounting kit which...
SKU: 630MCT-Mv
Vendor: Eastron
Availability: In Stock
Product Type: Three Phase Mv Meter
Regular price
£139.00
Regular price
Sale price
£139.00
Subtotal:
£139.00

Excluding VAT and Shipping

The prices displayed on these products exclude VAT and Shipping costs.

Free Shipping

Free standard shipping on orders over £500.00

Shipping

We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.

Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.

Payment Protection Guarenteed

Learn More.

Payment Protection

All orders purchased through this store are protected via Shop pay giving you the piece of mind you need to shop with us

Request A Quote

Ordering for a project, why not speak to one of our advisors about quantity orders

10 customers are viewing this product

The SDM630MCT-MV Digital Power Meter can be configured through the password-protected set up menu to work in Single or Three Phase circuits. The unit itself works in conjunction with 333mV current transformers, allowing an easy installation especially when retro-fitting. We have also designed a simple, but effective panel-mounting kit which secures this dinrail meter within a 92mm² cutout to provide a solution to a 96mm² Panel Meter (panel kits sold separately).

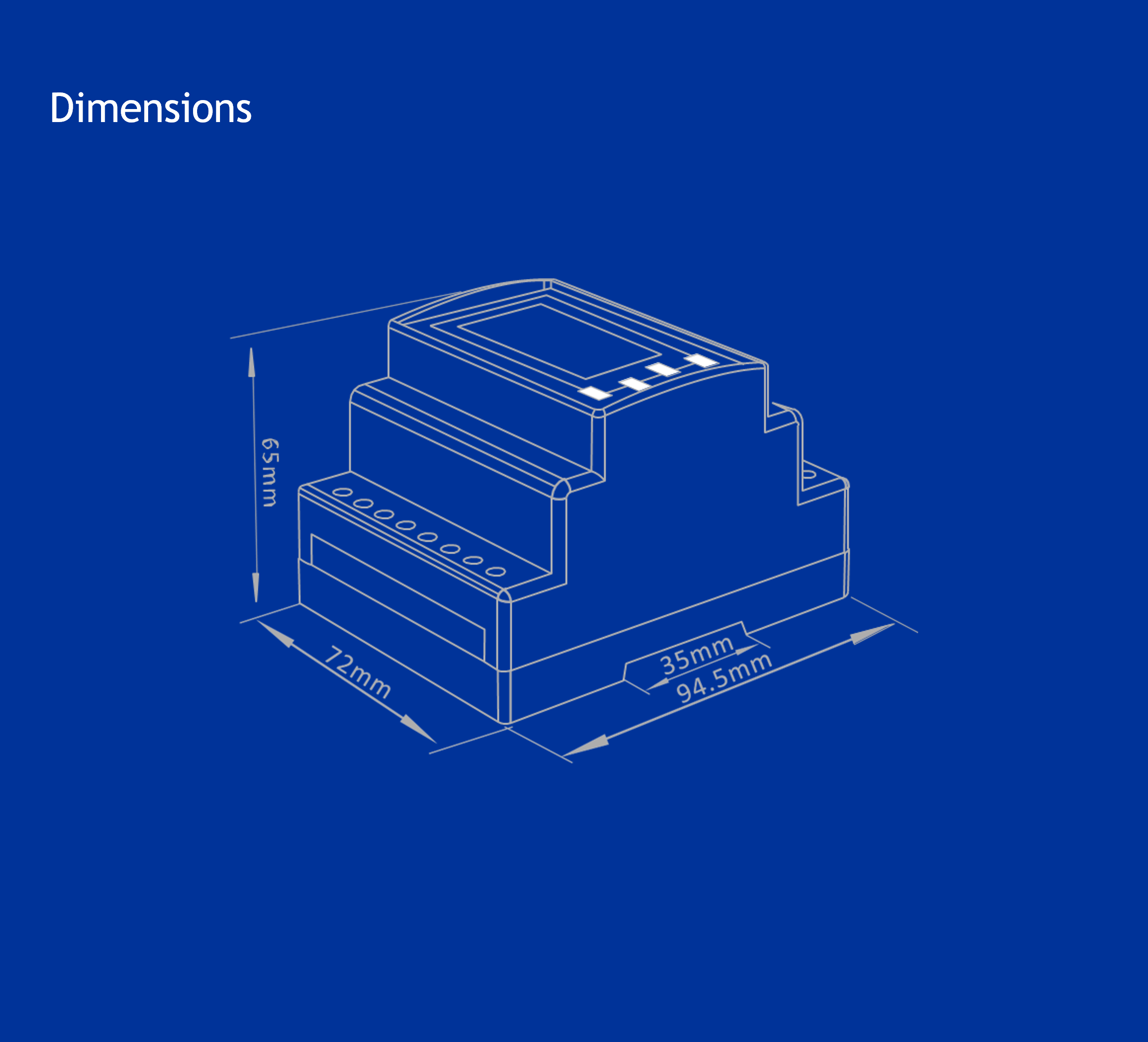

This particular meter has proven to be very popular due to the detailed measurements it can provide, such as Power Factor, Max Demand Power & Total Harmonic Distortion. Unlike other meters available on the market, this model has Pulse and Modbus communications built in, eradicating the requirement of purchasing extra modules. The SDM630 Series is housed in a 4-DIN (72mm) case meaning it is compact and space-saving. This specific model measures Voltage, Voltage THD, Current, Max Demand Current, Current THD, Frequency, Power Factor, Max Demand Power, Active Power,  Reactive Power, Apparent Power, Total Active Energy, Import & Export Active Energy, Total Reactive Energy, Import & Export Reactive Energy.

Technical Specification

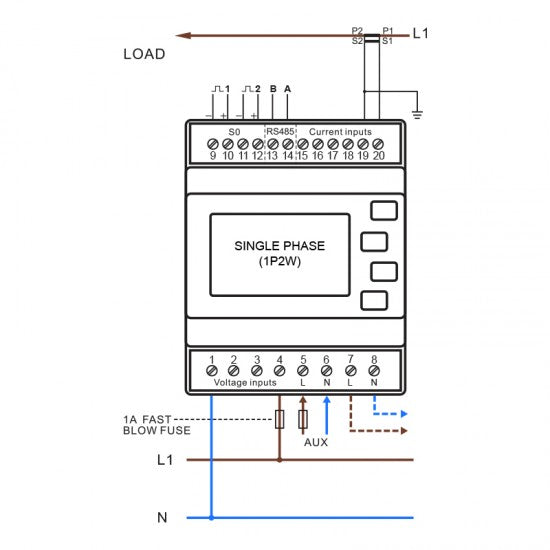

  • Single Phase (1P2W)

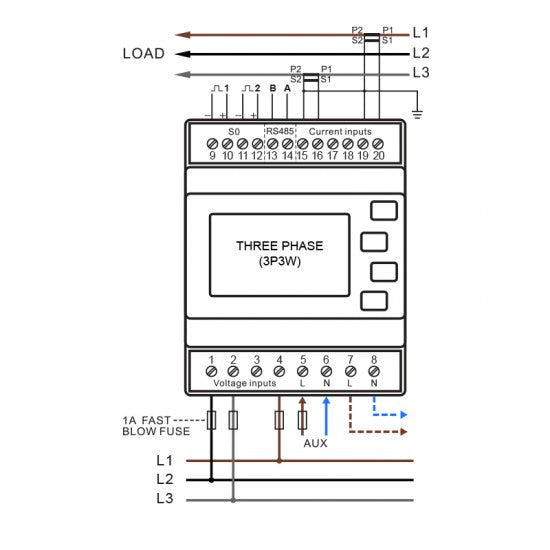

  • Three Phase (3P3W)

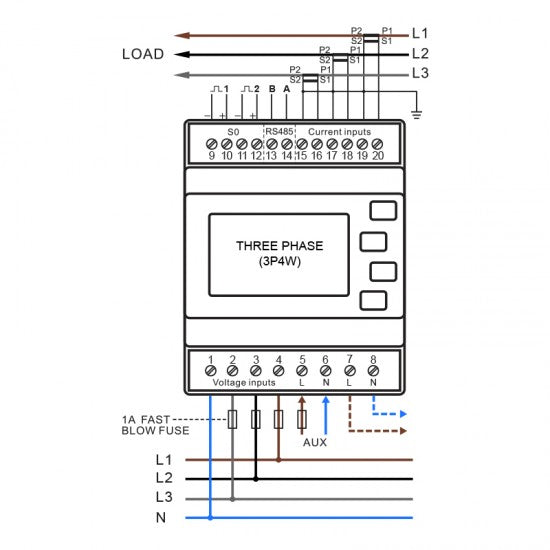

  • Three Phase (3P4W)
  • Multifunction
  • 333mV CT Operated
  • 230/400V AC
  • RS485 Modbus RTU
  • Dual Pulse Outputs
  • 4-DIN Module
  • Digital Backlit Display
  • Touch Screen buttons
SDM630MCT-Mv-MID Three Phase CT Operated Meter

Vendor: Eastron

SDM630MCT-Mv-MID Three Phase CT Operated Meter

JSG Metering Solutions LTD

Din Rail Metering

Our range of MID certified din rail meters are suitable for almost any LV application.

From our single phase 1 module meters all the way up to our three phase CT operated meters we can supply any type of din rail product either on its own or bespoke built into a pre wired enclosure for an out of the box solution.

JSG Metering Solutions Offers A Wide Range Of Din Rail Mounted Metering And Accessories

Din Rail mouting for simple install

DIN rail mounted electricity meters are designed for high level performance and are safe and fast to install. Our DIN rail mounted electricity meters are available in four product lines:

  • Single Phase SDM120 series
  • Single Phase SDM230 series
  • Three Phase SDM54 series
  • Three Phase SDM72D series

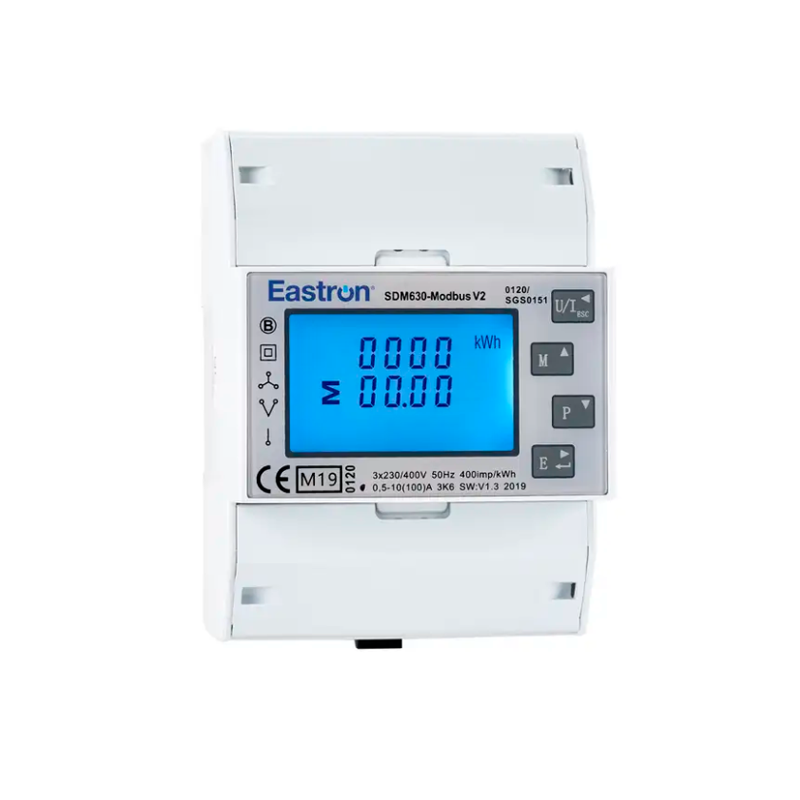

  • Three Phase SDM630 series
  • Three Phase SDM630MCT series
  • JSG Metering Solutions LTD

    Full metering solution

    Our full metering solutions means we can supply any type of meter directly to site ready for installation.

    Our fully trained warehouse team can program each meter before it leaves us so all you have to do is wire it in for a turnkey solution.
