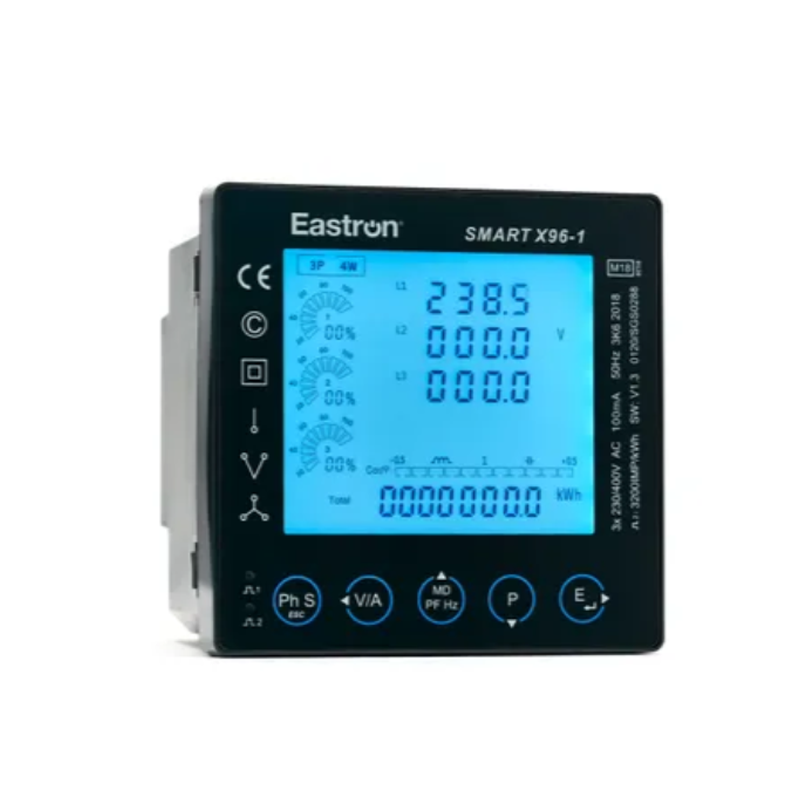

SMART X96-1-MID Panel Meter

No Review
2 sold in last 8 hours
PRODUCT FEATURES: Single Phase (1P2W) MID Certified Three Phase (3P3W) MID Certified Three Phase (3P4W) MID Certified Class 0.5s Accuracy Phase Sequence Detection Individual Harmonics upto 63rd /0.1A CT Operated RS485 Modbus RTU Dual Pulse Outputs 96mm² Panel Mounted (92mm² Cut Out) Digital Backlit Display Touch Screen Buttons Easy Click...
SKU: SMART X96-1-MID
Availability: In Stock
Product Type: Panel Meter
Regular price
£159.00
Regular price
Sale price
£159.00
Subtotal:
£159.00

Excluding VAT and Shipping

The prices displayed on these products exclude VAT and Shipping costs.

Free Shipping

Free standard shipping on orders over £500.00

Shipping

We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.

Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.

Payment Protection Guarenteed

Learn More.

Payment Protection

All orders purchased through this store are protected via Shop pay giving you the piece of mind you need to shop with us

Request A Quote

Ordering for a project, why not speak to one of our advisors about quantity orders

10 customers are viewing this product

PRODUCT FEATURES:

  • Single Phase (1P2W) MID Certified
  • Three Phase (3P3W) MID Certified
  • Three Phase (3P4W) MID Certified
  • Class 0.5s Accuracy
  • Phase Sequence Detection
  • Individual Harmonics upto 63rd
  • /0.1A CT Operated
  • RS485 Modbus RTU
  • Dual Pulse Outputs
  • 96mm² Panel Mounted (92mm² Cut Out)
  • Digital Backlit Display
  • Touch Screen Buttons
  • Easy Click (no wiring on CTs)

The Smart X96-1 Digital Power Meter is a plug in design to improve efficiency of installation and eliminate wiring errors. The unit itself works in conjunction with 0.1A (100mA) current transformers, allowing an easy installation especially when retro-fitting. This model also features a Phase Summary screen, making it easy to view the Active Power, Voltage and Current of each phase all on the same screen.

This particular meter has proven to be very popular due to the detailed measurements it can provide, such as Power Factor, Max Demand Power & Individual Harmonic Distortion. Unlike other meters available on the market, this model has Pulse and Modbus communications built in, eradicating the requirement of purchasing extra modules. The Smart X96 Series is housed in a DIN 96mm² case meaning it can be door mounted in a 92mm² cutout. This specific model measures Voltage, Voltage THD, Current, Max Demand Current, Current THD, Frequency, Power Factor, Max Demand Power, Active Power,  Reactive Power, Apparent Power, Total Active Energy, Import & Export Active Energy, Total Reactive Energy, Import & Export Reactive Energy.

We have invested in MID B&D certification for the SMART-X96 range, this proves the accuracy and quality of the product and allows it to be used for Billing Applications. Since April 2016, MID-approved Meters will be the only legal option when the measurements are to be used for billing. All of our MID-approved meters are certified here in the UK.

SMART X96-1-MID Panel Meter

Vendor: Smart Process & Control LTD

SMART X96-1-MID Panel Meter

JSG Metering Solutions LTD

Panel Metering

Our range of MID certified panel meters are suitable for any industrial installation.

Our Smart X96 range has been carefully designed and engineered to offer the highest level of accuracy and measurement parameters while maintaining their size and simplistic UX. Touch screen buttons and the slick black casing gives this series a futuristic, ascetically pleasing look. Having gained a reputation over the last 10 years for their reliability, Eastron panel meters are the desired energy monitor for panel builders and contractors looking for quality and intelligent design.

JSG Metering Solutions LTD

Panel mouting for Industrial Install

Panel mounted electricity meters are designed for high level performance and are safe and fast to install. Our Panel mounted electricity meters are available in two product lines:

  • Smart x96-1 Easy Click series
  • Smart x96-5 series
