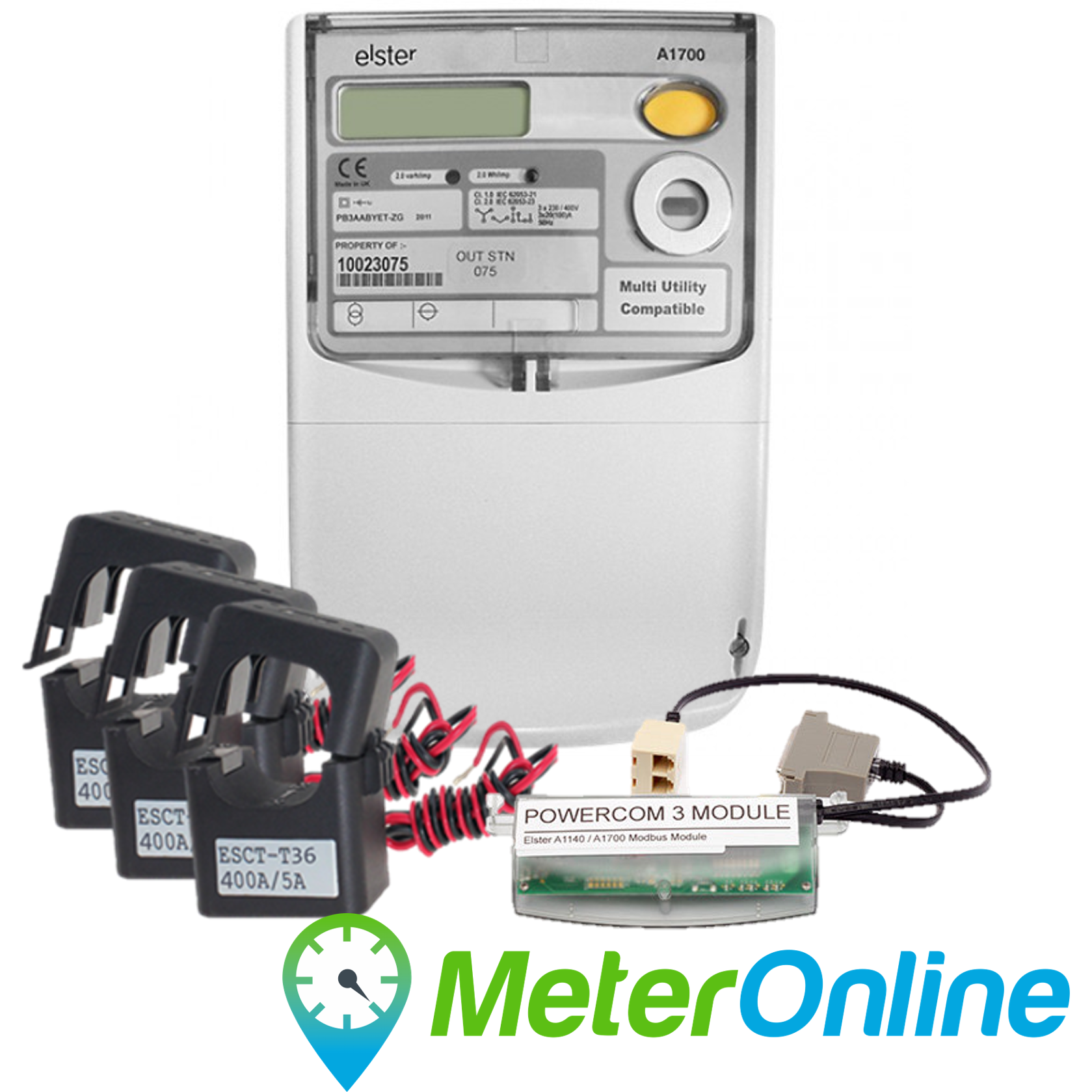

Bundle: Elster A1700 Three Phase Current Transformer Operated Meter

No Review
2 sold in last 8 hours
T24(100-250amp)/T36(300-600amp) Current Transformers The Elster A1700 meter provides the complete solution for complex time of use metering for commercial and industrial consumers.The Elster A1700 is of modular design, allowing one module for input or output and one module for communications to be fitted underneath the terminal cover. The Meter can...
SKU: A1700-Modem-T24-100/5A
Vendor: Elster
Availability: In Stock
Product Type: Three Phase Meter
Regular price
£525.00
Regular price
Sale price
£525.00
With Modem: Yes
With CT's: Yes
CT Ratio: 100/5A
Subtotal:
£525.00

Excluding VAT and Shipping

The prices displayed on these products exclude VAT and Shipping costs.

Free Shipping

Free standard shipping on orders over £500.00

Shipping

We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.

Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.

Payment Protection Guarenteed

Learn More.

Payment Protection

All orders purchased through this store are protected via Shop pay giving you the piece of mind you need to shop with us

Request A Quote

Ordering for a project, why not speak to one of our advisors about quantity orders

10 customers are viewing this product

T24(100-250amp)/T36(300-600amp) Current Transformers

The Elster A1700 meter provides the complete solution for complex time of use metering for commercial and industrial consumers.The Elster A1700 is of modular design, allowing one module for input or output and one module for communications to be fitted underneath the terminal cover. The Meter can be programmed or read either locally or remotely. Local communications is established via an optical communications port, using a PC or Hand Held Unit incorporating the IEC 62056-21 (formerly IEC 61107) protocol.

 To read these smart meters remotely you will need MeterOnline unless you have your own AMR system, The MeterOnline Portal Can Be Accessed Here

Technical Specification

  • CT & CT/VT operated
  • Three phase networks
  • MID Approved
  • Communications via optical port or communications module
  • Plug in modules for extended functionality
  • Comprehensive tariff structure
  • 2 line, multilingual dot matrix display
  • Instantaneous instrumentation values
  • 2 module slots for extended functionality
  • 900 or 450 days load profile data
  • Accuracy Class 0.2s, 0.5s (CT only), 1 or 2
  • Concealed Utility/Reset pushbutton
  • High security design

Click Here For Product Datasheet

Bundle: Elster A1700 Three Phase Current Transformer Operated Meter

Vendor: Elster

Bundle: Elster A1700 Three Phase Current Transformer Operated Meter

JSG Metering Solution Primary Supplier For MeterOnline Remote Metering Management Platform

Why not monitor Online?

Smart Meters mean that the days of driving for miles, crawling into a cupboard, dusting away the cobwebs and peering at a meter to obtain a reading are over. Smart Metering saves errors, time and money and is easy to do. This luxury is not only available to the major utility companies, if you already have generation meters on Solar PV systems or sub-meters in industrial units it is a simple matter to replace them with a Smart Meter that can be read via MeterOnline. Or if it is a new project we can supply the Smart Meters to fit from day one.

Using JSG Metering Solutions MeterOnline Management Platform Landlords Can Remote Monitor Any GPRS Meter They Own In Real Time From The Comfort Of Their Own Home

How it works

MeterOnline gives our customers the capability to have their own Smart Meters installed and read them via our cloud portal at any location and on any device from PC to iPhone. The underlying idea is to make the process simple and use standard smart meters from the major manufacturers for reliability, ease of installation and cost effectiveness. In the background the service takes care of, SIM card, airtime and communications security. In addition to automatically reading the meter, MeterOnline stores, processes and communicates the readings to simplify the customers end objective e.g. Claiming FIT, monitoring energy use or billing their customers.

Over the years we have become a leading metering service provider.

Accessibility is key to our cloud portal.

It’s the simple solution, fit the meter, read it via MeterOnline
